PTZ Optics



Regular price $899.00 USD
Regular price $989.00 USD Sale price $899.00 USD
Sale Sold out

Create a Powerful, Precise and Versatile Production Experience

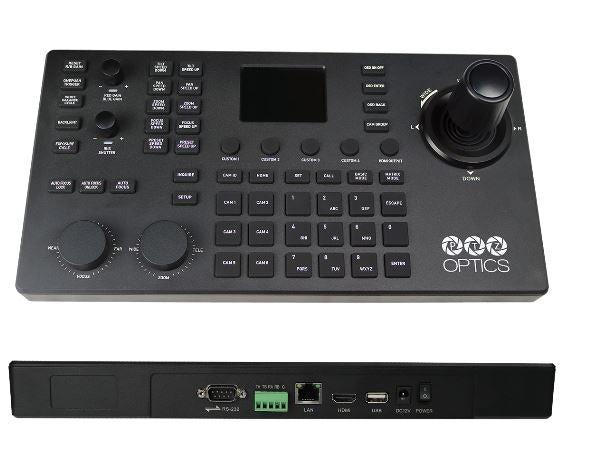

Introducing the PTZOptics SuperJoy, a PTZ camera joystick controller designed for smooth, efficient production workflows. The SuperJoy takes remote pan, tilt, and zoom camera operations to the next level in a simplified user interface with advanced controls for power users.

Custom Control Across a Variety of Cameras and Devices
The PTZOptics SuperJoy Joystick Controller is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation.

  • Simultaneous pan, tilt and zoom control across IP, NDI® and serial cameras from multiple brands including PTZOptics, HuddleCamHD, Sony, BirdDog, and NewTek
  • If it’s IP-controlled, chances are the SuperJoy can control it – cameras, lights, projector screens and more – using four customizable buttons
  • Powerful Super-Preset buttons are programmable to trigger synchronized multi-preset commands across up to four unique camera groups with up to eight cameras each

Streamlined, Real-Time Production
The SuperJoy offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups.

  • Ergonomic, rubberized controls and pressure-sensitive knobs for precise, on-the-fly-tuning, with no OSD adjustments required
  • Status-responsive backlit buttons and knobs indicate available camera modes, while optional tablet/computer control can allow for remote monitoring
  • Use the built-in decoder with HDMI output for setup and monitoring, while current configuration status is displayed on the SuperJoy’s built-in LCD screen

From Power Users to Novices, a Controller for Everyone
With three user-centered control modes designed to accommodate varying skill levels, the SuperJoy offers unparalleled flexibility for production teams of all backgrounds and experiences.

  • Use Basic and Basic Plus mode to limit functions to presets and single-camera control
  • Matrix mode enables operators to call presets across up to three cameras
  • Expert users can program custom buttons for production automation

Superior Performance, Flexibility and Support – All for Less Than You Might Think
Backed by PTZOptics’ 2-year warranty, plus full support from PTZOptics’ technical team, the SuperJoy is an ideal choice for video production crews looking to improve their workflows and streamline their production processes.

Main Features
● Durable metal housing
● PTZOptics VISCA over IP & Serial control
● Limited NDI® & Sony® control
● PTZOptics Camera On Screen Display
● Full Pan / Tilt / Zoom camera control
● P/T/Z Speed adjustment on the fly
● Direct exposure & white balance control
● 4 Camera Control Groups
○ 7 Cameras per Camera Group
● 255 camera presets, 9 Quick presets
● 4 Customizable buttons (TCP, UDP, & HTTP)
● Fine tune zoom & focus control dials
● Buttons glow when available
● RTSP output via HDMI
● PTZOptics Focus Lock & Unlock
● Large LCD screen with controller status
● Import / Export settings via network & USB
● 2-Year warranty


Technical Specifications

  • Connections: RS-232, RS-485, RS-422, RJ-45
  • Control Protocols:VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI
  • Max Cameras: 28 cameras total
    (4 groups of 7 channels)
  • Recommended Max Distance:
    RS-232 / RS-422: 50 ft | 15m
    RS-485: 3,937 ft | 1200m
    Ethernet: 328 ft | 100m
  • Baud rate: 1200 ~ 19200 bps

Operation Specifications

  • Power: 6W | 12VDC / PoE (802.3af)
  • (Only use one (1) power source at a time.)
  • Working Temp: 14° F ~ 122° F | -10° C ~ +50° C
  • Working Humidity: 10% ~ 90% (non-condensation)
  • Weight 3.75 lbs | 1.70 kg
  • Dimensions (in.): 13.94 W x 7.05 D x 3.98 H
  • Dimensions (mm.): 370 W x 180 D x 101 H


  • PT-SUPERJOY-G1 Joystick Controller
  • 12V 2A DC International Power Supply
  •  RS-232C cable 8ft (2.4m)
  •  PT-SUPERJOY-G1 Quick Start Guide
