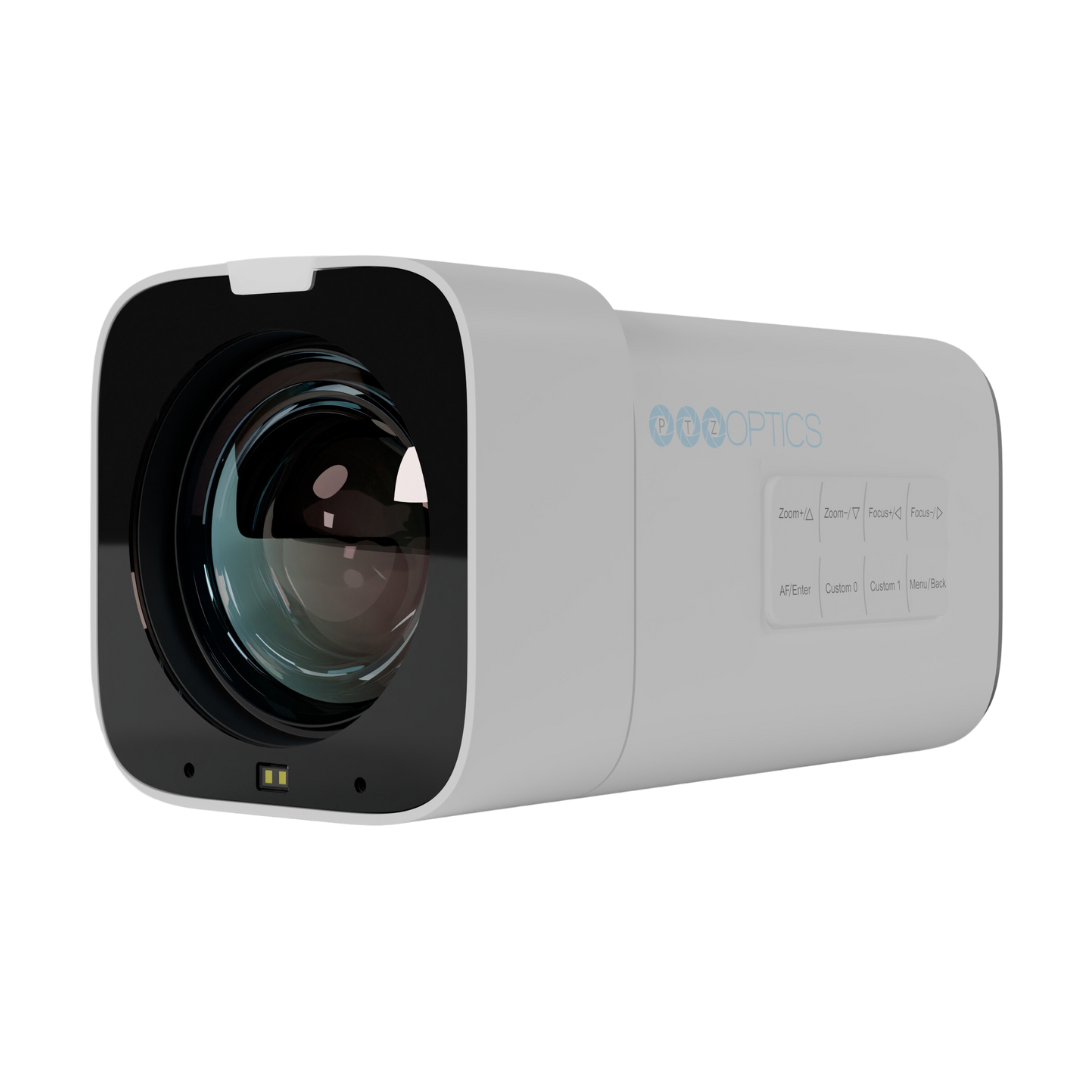

PTZOPTICS STUDIO 4K 20X ZOOM BOX CAMERA

The Studio 4K is your ultimate content and live-streaming fixed lens camera. It offers 12X and 20X optical zoom, with up to 16X digital zoom, enabling you to effortlessly engage your audience with built-in NDI® HX2, SDI, and HDMI outputs.

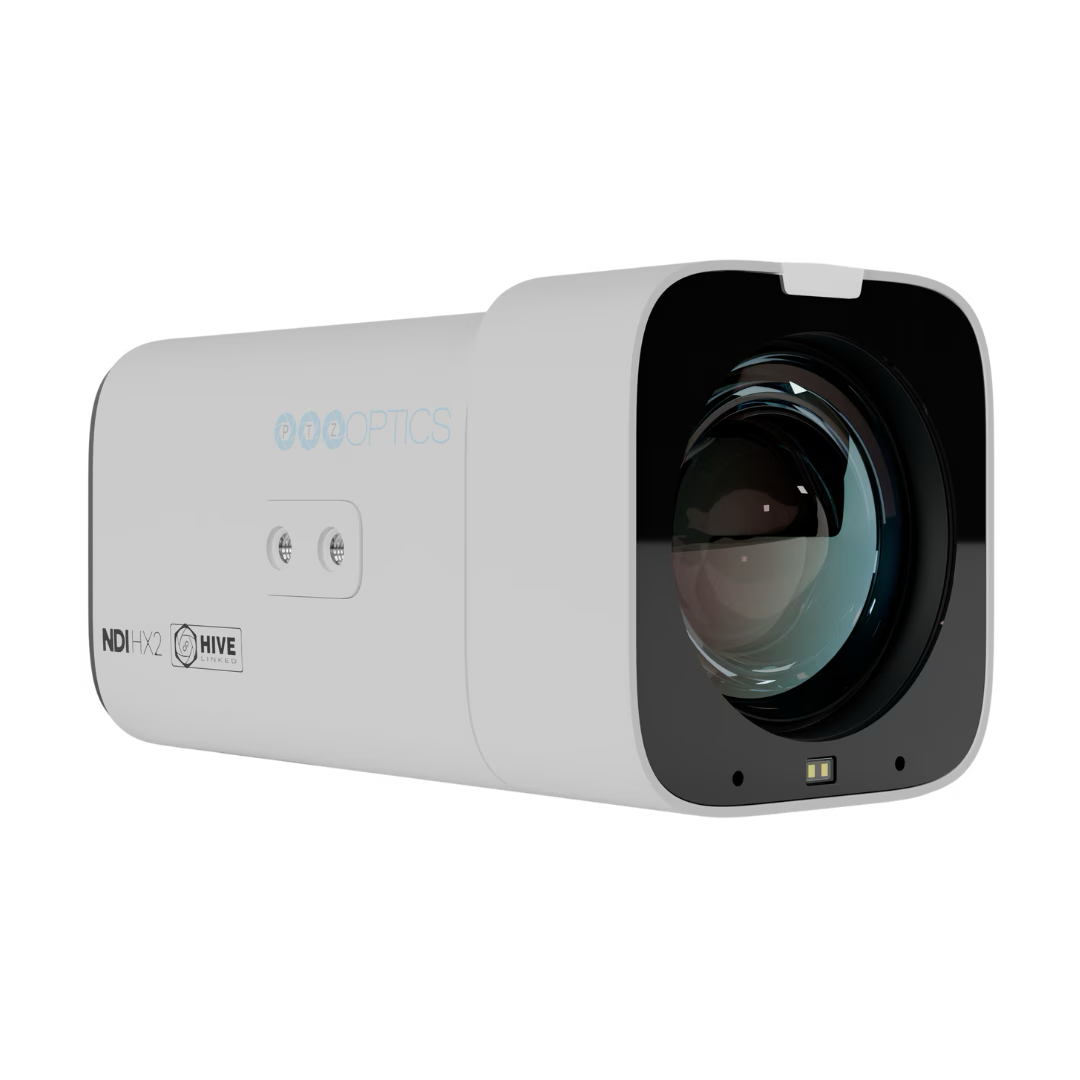

Introducing the PTZOptics Studio 4K, a compact camera that delivers stunning 4K 60fps resolution with 12X or 20X optical zoom options. Hive-Linked, it seamlessly integrates with Hive Studio, allowing for one-click cloud-based camera control over multiple video output options. By investing in the Studio 4K, you’re securing a future-proof solution that consistently delivers reliability, versatility, and top-tier performance for years to come.

Enhance your productions with the convenience of a built-in microphone.

Multiple control options include an IR remote, Web UI, PTZ Control App, USB port, PTZOptics Joysticks, Camera Management Platform, and PTZOptics Hive-Studio.

Simultaneous outputs include

1. HDMI or SDI + IP + RTMP + NDI,
2. HDMI or SDI + USB,
3. HDMI or SDI + IP + USB.


Shoot high-quality 4K video at 60fps with the next-generation SONY UHD CMOS sensor. Adjustable to numerous other resolutions and frame rates.

Easily discover and connect to a network with simple network discovery.

CAMERA AND LENS
Lens
(12X) 1/2.8 inch, CMOS
(20X) 1/2.8 inch, CMOS
Image Sensor
(12X & 20X) 8MP, Effective Pixels: 8.4M
Digital Zoom
16X
Resolution and Frame Rate
HDMI: 3840x2160p-60/59.94/50/30/29.97/25,
1920x1080p-60/59.94/50/30/29.97/25,
1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25,
1920x1080i-60/59.94/50, 1280x720p-60/59.94/50
Optical Lens Focal Length (Zoom)
(12X) f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
(20X) f = 4.7mm ~ 94mm, F1.6 ~ F3.6
Optical Lens Field of View
(12X) H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
Horizontal & Vertical
(20X) H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
Display Field of View
(12X) 80°
(20X) 67.8°
Min Lux
0.5 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
Presets
255 Presets
Preset Accuracy
0.1⁰
Image Flip
Supported
Image Mirror
Supported
Image Freeze
Supported

PHYSICAL
Material
Aluminum, Plastic
Dimensions (L x W x H)
5.7” L x 2.99” W x 3.09” H | 145 mm L x 76 mm W x 78.5mm H
Weight
(12X) 1.5 lbs | 0.68kg
(20X) 1.4 lbs | 0.64kg
Working Environment
Indoor
Humidity Range
10% - 80%
Operating Temperature
14°F ~ 104°F (-10°C ~ 40°C )
Storage Temperature
-40°F ~ 140°F (-40°C ~ 60°C)

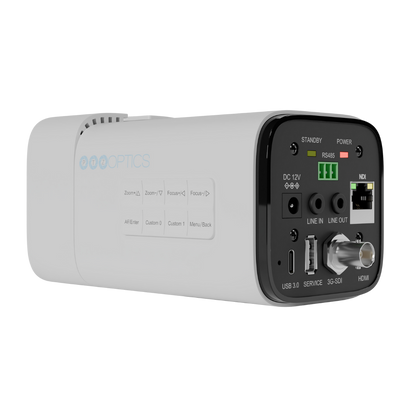

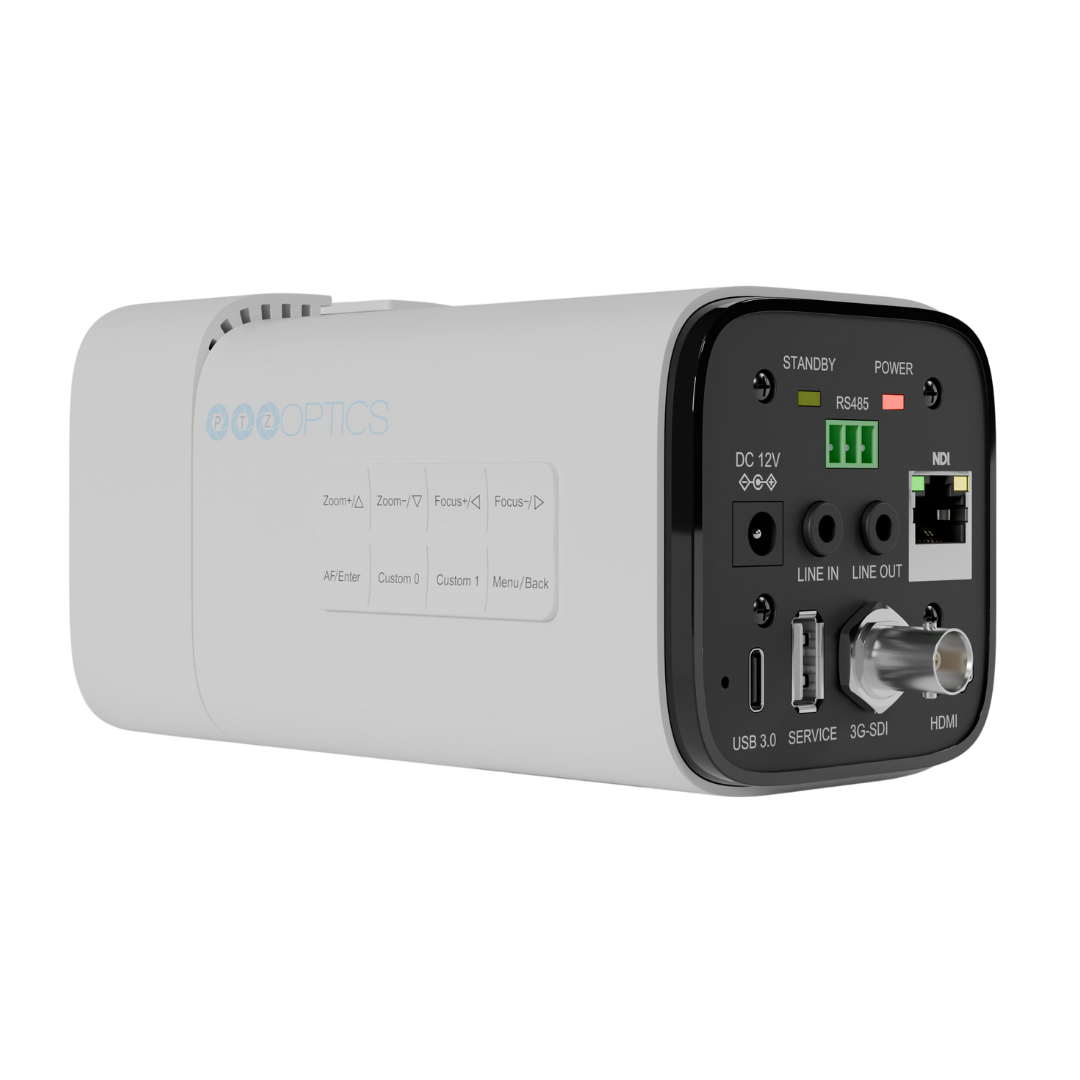

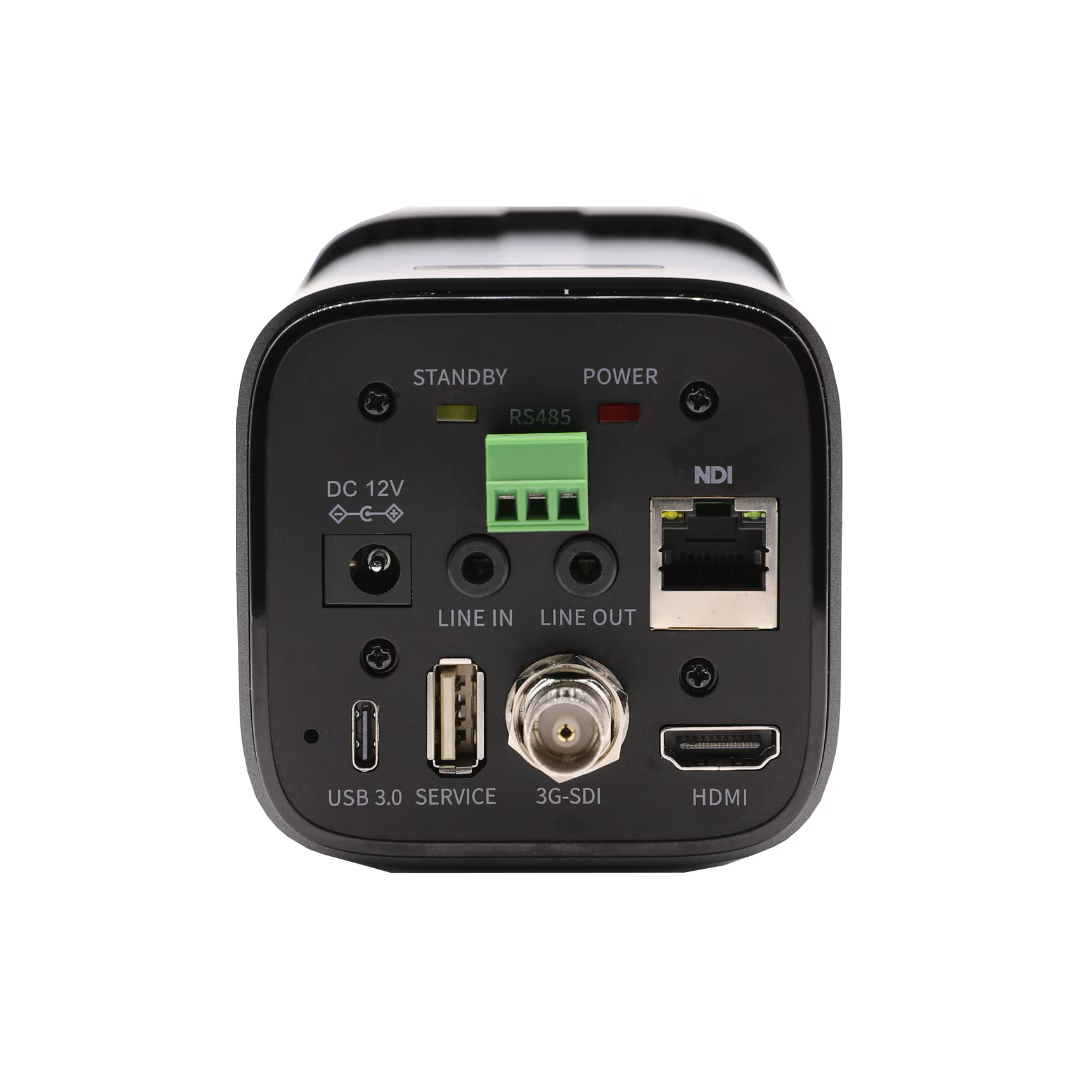

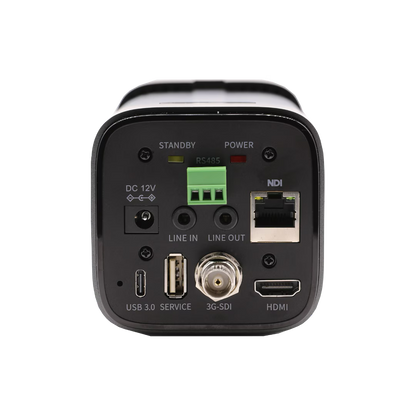

CONNECTIONS
HD Video Output
1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI HX2 enabled
1x HDMI: version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M
Audio Interface
1x 3.5mm Line level Input
1x 3.5mm Line level Output
Video Formats
USB
•YUY2: Max resolution: 1920x1080p@30
•MJPEG: Max resolution: 3840x2160p@30
•H.264 AVC & SVC: Max resolution: 3840x2160p@30
H.265: Max resolution: 3840x2160p@30 ( RSTP/NDI HX2 only)
Compression Standards
H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI HX2 only)
UVC Version Supported
UVC 1.1 ~ 1.5
Supported Protocols
TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI HX2, SRT, Multicast, etc.
IR
4x IR Addresses, Max distance 30ft / 9m
Power Supply
JEITA type (DC IN 12V) / PoE (802.3at)
Current Consumption
Max 2A
Power Consumption
Max. 18W
