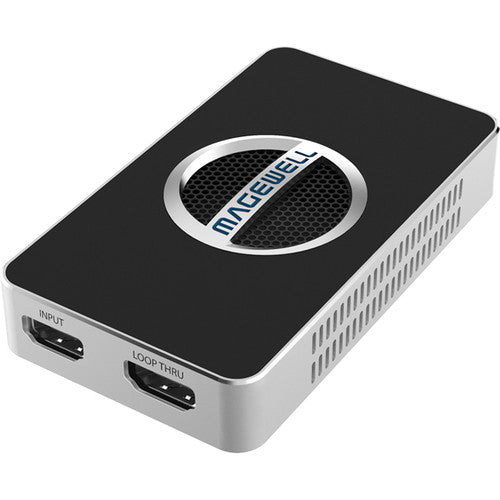

Magewell USB Capture HDMI 4K Plus

Magewell USB Capture HDMI 4K Plus

$479.00 USD
$479.00 USD
Sale Sold out
Key Features
  • Capture up to DCI 4K to Your Computer
  • Capture from Cameras/Game Consoles/Etc.
  • Supports RGB 4:4:4, YCbCr 4:4:4 & 4:2:2
  • HDMI Input & Loop-Through
  • 3.5mm Audio I/O (Capture/Extract)
  • USB 3.0 Computer Interface
  • Works with Windows, Mac, Linux, Chrome
  • Scaling, Multiple Color Spaces, and More

Capture Stunning 4K Video with Ease

The Magewell USB Capture HDMI 4K Plus allows you to record high-resolution video directly from your computer.

Key Features:

  • Capture sharp 4K video up to 60 fps: Preserve incredible detail and smooth motion from your source.
  • Versatile compatibility: Works seamlessly with Windows, Mac, Linux, and Chrome computers.
  • Simple setup: Plug-and-play operation for quick and easy recording.
  • Multiple recording options: Capture video in various formats and color spaces to suit your needs.
  • Advanced processing: Built-in features like scaling, deinterlacing, and color correction for professional-looking results.
  • Multiple device support: Connect and use multiple capture cards on the same computer.

Additional Features:

  • HDMI loop-through: Monitor your captured video on an external display while recording.
  • 3.5mm audio input and output: Capture external audio or use headphones for monitoring.
  • Status LED: Provides visual cues for device status.
  • Customizable settings: Fine-tune your recordings with advanced options like cropping, mirroring, and frame rate conversion.

In essence, the Magewell USB Capture HDMI 4K Plus is a powerful tool for gamers, streamers, and content creators who demand high-quality video capture. Its user-friendly design, versatile features, and advanced processing capabilities make it a reliable solution for capturing stunning visuals.

Supported Operating Systems
Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 and x64)
OS X 10.9 - 10.11
macOS 10.12
Linux x (Ubuntu 12.04 - 16.10, CentOS 7)
Chrome OS
Input Resolution
Up to 4096 x 2160, 4:4:4, 60 fps input signals
Supported Sampling Rate
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2

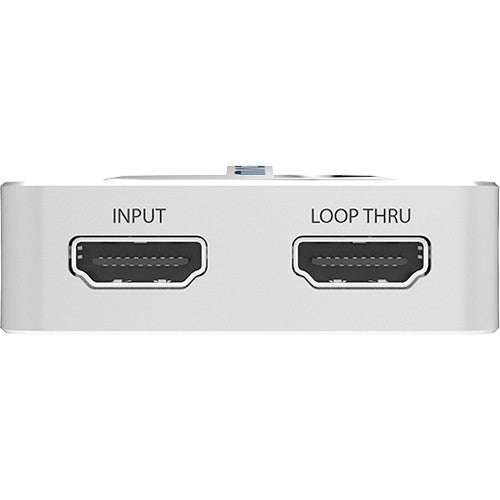

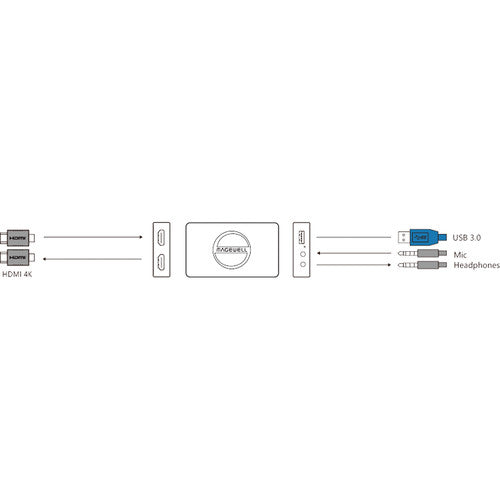

Input
1 x HDMI 2.0

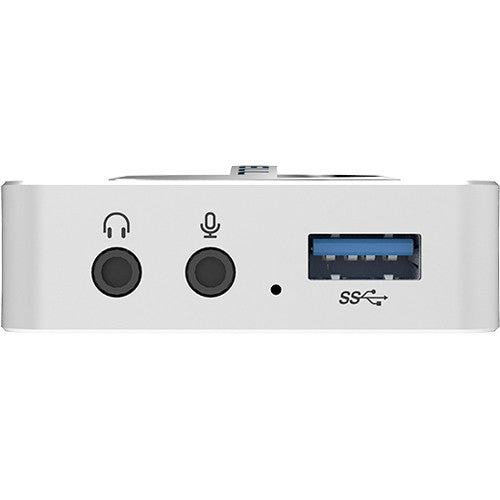

1 x 3.5 mm audio jack
Output
1 x HDMI loop-output
1 x 3.5 mm audio jack
Host Interface
1 x USB 3.0 (compatible with USB 3.1 Gen 1, USB 2.0)
Video Capture Formats
Up to 4096 x 2160

Frame rates up to 120 fps (actual capture frame rate can be limited by USB bandwidth and internal working frequency; typical capture frame rates on the Intel USB 3.0 controller are: 1920 x 1080 YUY2 at up to 90 fps, and 3840 x 2160 NV12 at up to 30 fps)

NV12 and I420 4:2:0 8-bit (up to 4096 x 2160)
YUY2 and UYVY 4:2:2 8-bit (up to 4096 x 2160)
RGB24 and RGB32 4:4:4 8-bit (up to 2048 x 2160)
Default capture formats are YUY2 and NV12
Supported APIs
Windows:
DirectShow
Wave API/DirectSound/WASAPI

Linux:
V4L2
ALSA

OS X/macOS
QuickTime
AV Foundation
Supported Software
VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow, V4L2, QuickTime, AV Foundation-based encoding, or streaming software
Power Consumption
5 V Max Current: 1.4 A Max Power Consumption: 7 W
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 158°F (-20 to 70°C)
Relative Humidity
5 to 90% non-condensing
Dimensions
3.9 x 2.2 x 0.7" (9.8 x 5.7 x 1.7 cm)
Packaging Info
Package Weight
0.525 lb
Box Dimensions (LxWxH)
5.4 x 5.25 x 1"
