Magewell

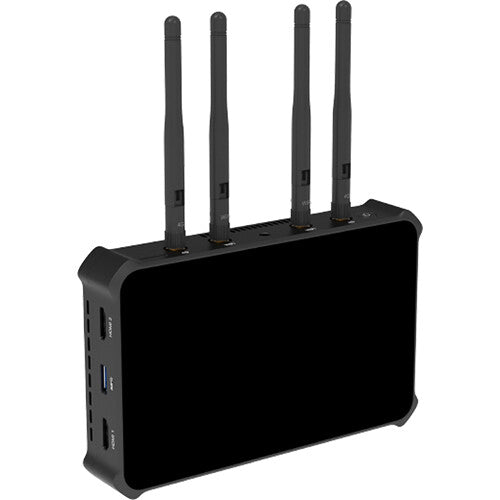

Magewell Director One Compact Live Streaming Encoder, Switcher, Monitor & Recorder

Magewell Director One Compact Live Streaming Encoder, Switcher, Monitor & Recorder

$1,599.00 USD
$1,599.00 USD
Sale Sold out

Experience the full potential of your live event and remote feed productions with Director One - the all-in-one solution featuring multi-input switching, graphics, streaming, recording, and monitoring capabilities. Utilizing a large 7" touchscreen, Director One offers expansive views and seamless control, while its built-in 4G modem and antennas provide reliable network connectivity on-the-go. Achieve enhanced visibility and ease with Director One's versatile design, perfect for any production need.

  • 7" AMOLED touchscreen with 800 nits brightness and 100000:1 contrast ratio
  • Supports flexible input sources ranging from AV and IP streams to media files
  • Intuitive user interface and companion App for scene editing and creating shows
  • Rich output possibilities including RTMP and SRT streams, NDI® HX and local displays

Director One is equipped with a high-quality 7-inch AMOLED touchscreen, delivering vibrant visuals with 800-nit brightness, an exceptional 100,000:1 contrast ratio, and a customizable refresh rate of 50Hz or 60Hz. Regardless of lighting conditions, Director One’s display ensures crystal-clear visibility and lifelike color accuracy, providing a seamless experience for capturing every moment with precision.

Stay Connected Anywhere with Integrated 4G and WiFi

Equipped with an integrated 4G modem and dedicated 4G and Wi-Fi antennas, Director One provides users with unparalleled flexibility in networking environments. Its advanced bonding support ensures stable and reliable connectivity, regardless of location, from remote settings to bustling events. Director One maintains seamless connectivity, ensuring uninterrupted streaming and comprehensive control for an exceptional production experience.

Expand Your View with HDMI Output

Director One is equipped with an HDMI output port, facilitating seamless connection to an external screen for an enhanced display experience. Moreover, connected touchscreen displays enable intuitive and flexible management of productions by allowing the Director One to be controlled in reverse.

Incredible Input Source Flexibility

Users can seamlessly switch between two HDMI inputs and two USB AV inputs. Additionally, they can simultaneously access three live IP sources, including SRT streams, RTMP streams, RTSP streams, NDI® High Bandwidth, and NDI® HX sources. Users can simultaneously connect up to three NDI sources, with one of them capable of serving as a motion graphics overlay utilizing NDI’s alpha channel. Furthermore, HTML webpages and file-based media assets, encompassing video, audio, and images, can be freely combined with live sources.

Incredible Input Source Flexibility

Users can switch between two HDMI inputs and two USB AV inputs. They can also bring in three simultaneous live IP sources, including SRT, RTMP, RTSP, NDI® High Bandwidth, and NDI® HX sources. One of these NDI sources can be used as a motion graphics overlay with an alpha channel. Users can also combine HTML webpages, file-based media assets like video, audio, and images, with live sources.

Inputs

  • Two HDMI inputs
  • Two USB AV inputs
  • Three simultaneous live IP sources (SRT, RTMP, RTSP, NDI® High Bandwidth, NDI® HX2, NDI®HX3)
  • Mobile camera (via Director Utility App)
  • Media files (video, image, music, etc.)
  • Webpage Inputs

Features

  • Shows can be created in landscape (16:9) or portrait (9:16) mode
  • A show can consist of multiple scenes
  • Supports multi-view composition in one scene, providing prebuilt layouts for easy creation
  • Powerful production tools including chroma keying, graphics, telestration and more
  • Display multiple GFXs, including titles, lower thirds, a scoreboard, timer, stopwatch, etc.

Streaming

  • Natively support streaming to YouTube, Twitch and Facebook Live
  • Stream via SRT, RTMP and NDI® HX3
  • Supports customizing encoding parameters and selecting the encoding source for ISO streaming
  • Supports streaming to two destinations simultaneously

Recording and screenshot

  • Split recording files by time or size
  • Supports ISO recording, to record two of different sources simultaneously, or record two-channel images with different quality for one source

Included Software

Network

  • Supports network bonding
  • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
  • WiFi: 2.4G/5G, Station and AP modes are both supported
  • Cellular: 1* 4G SIM card slot & USB modem supported

Others

  • 7" AMOLED capacitive touchscreen
  • Screen brightness 800nit, contrast ratio 100000:1
  • Warranty: 2 years for the whole device, 1 year for the screen
  • Form factor: 185.2mm (L) x 117.2mm (W) x 32.8mm (H) or 7.29in (L) x 4.61in (W) x 1.29in (H)
