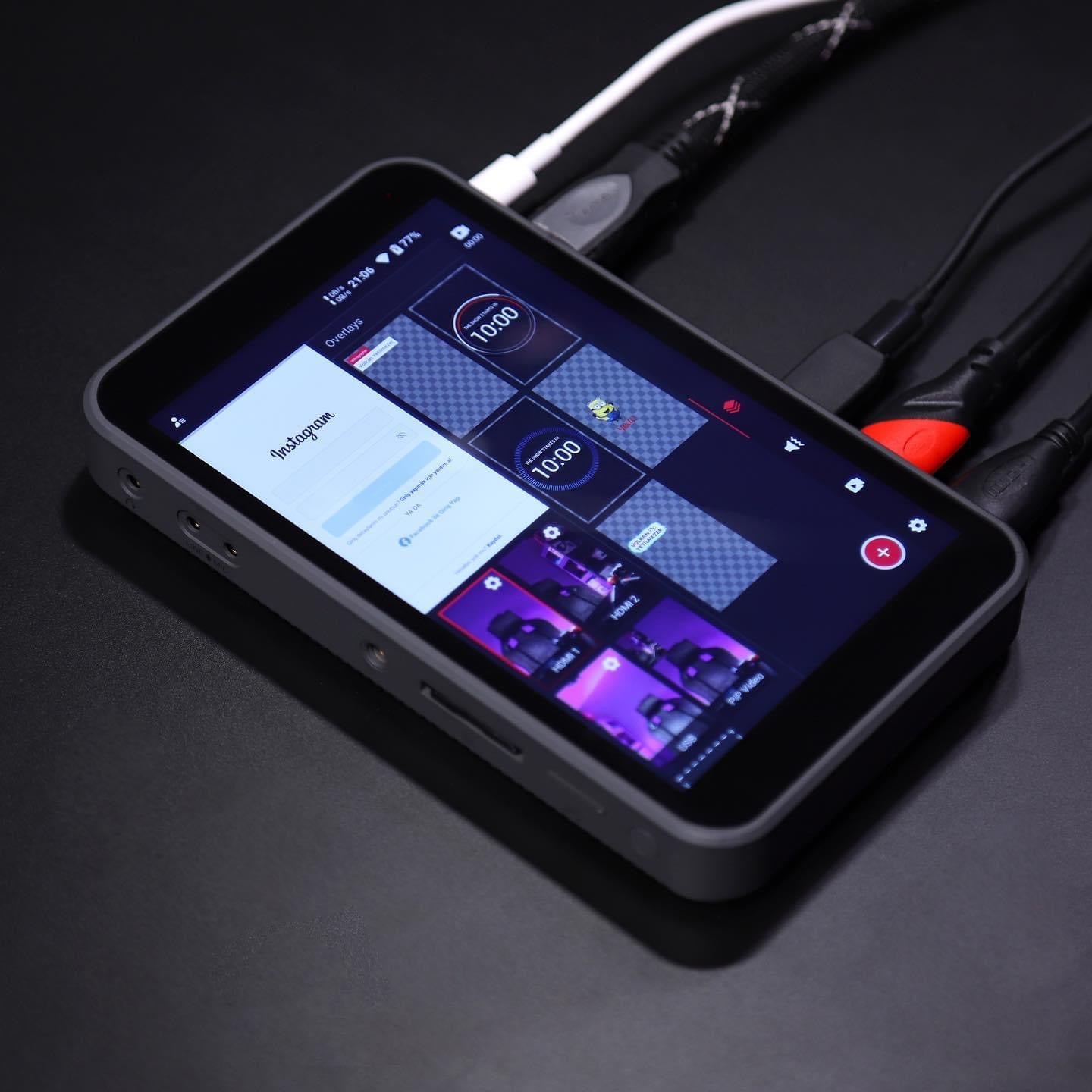

YoloLiv Instream Social Media Multicamera device

YoloLiv Instream Vertical Video All-in-One Encoder, Switcher, Monitor, and Stream

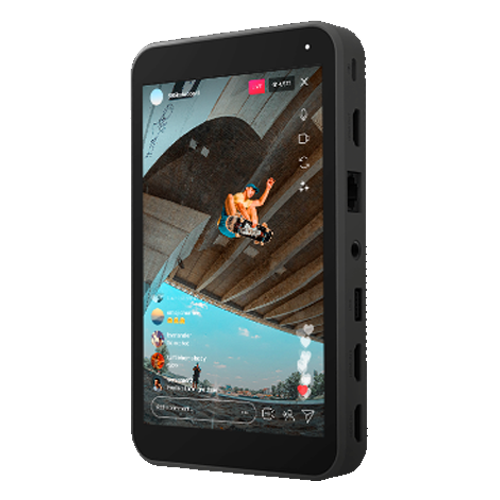

Vertical Streaming Made Easy. The first and only all-in-one multi-cam vertical live streaming studio.

Now you can use a single tool to stream to verticle live streaming social media platforms.   It is designed to work seamlessly on platforms like TikTok and Instagram, with more to come.

Create better content for Instagram, TikTok, CapCut, Zoom and more.

• Multi-Cam

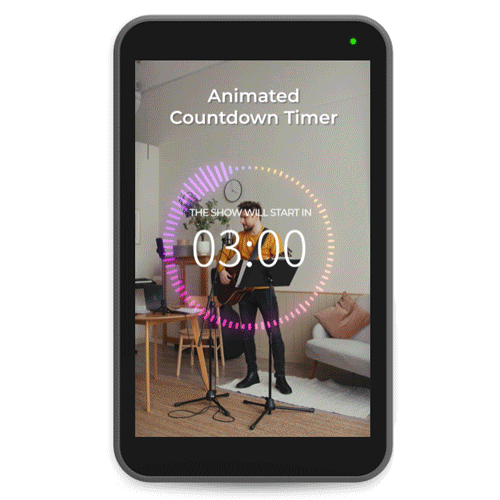

• Countdown Timer
• Picture in Picture

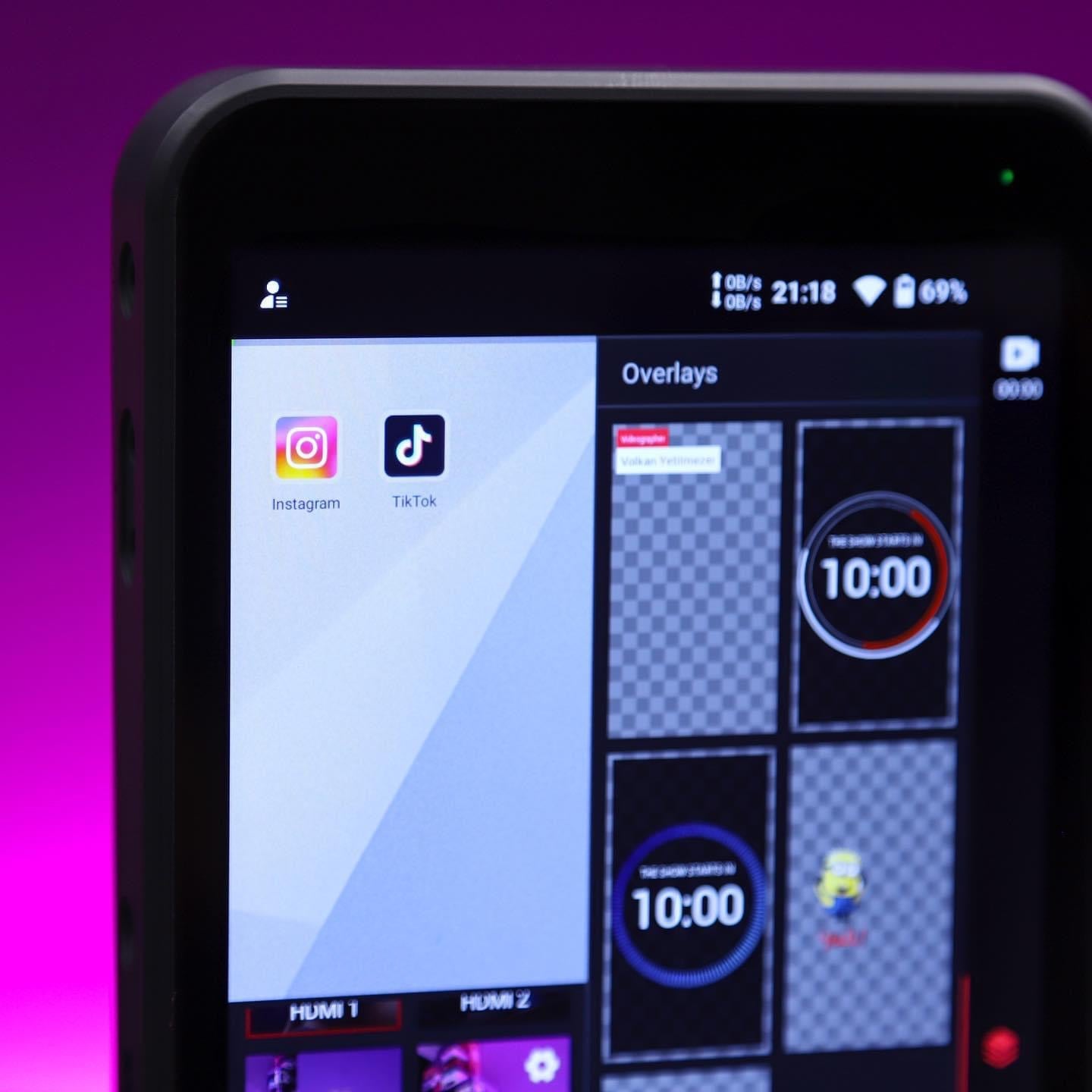

• Graphic Overlays
• Lower-Thirds
• Chroma Key

Features:

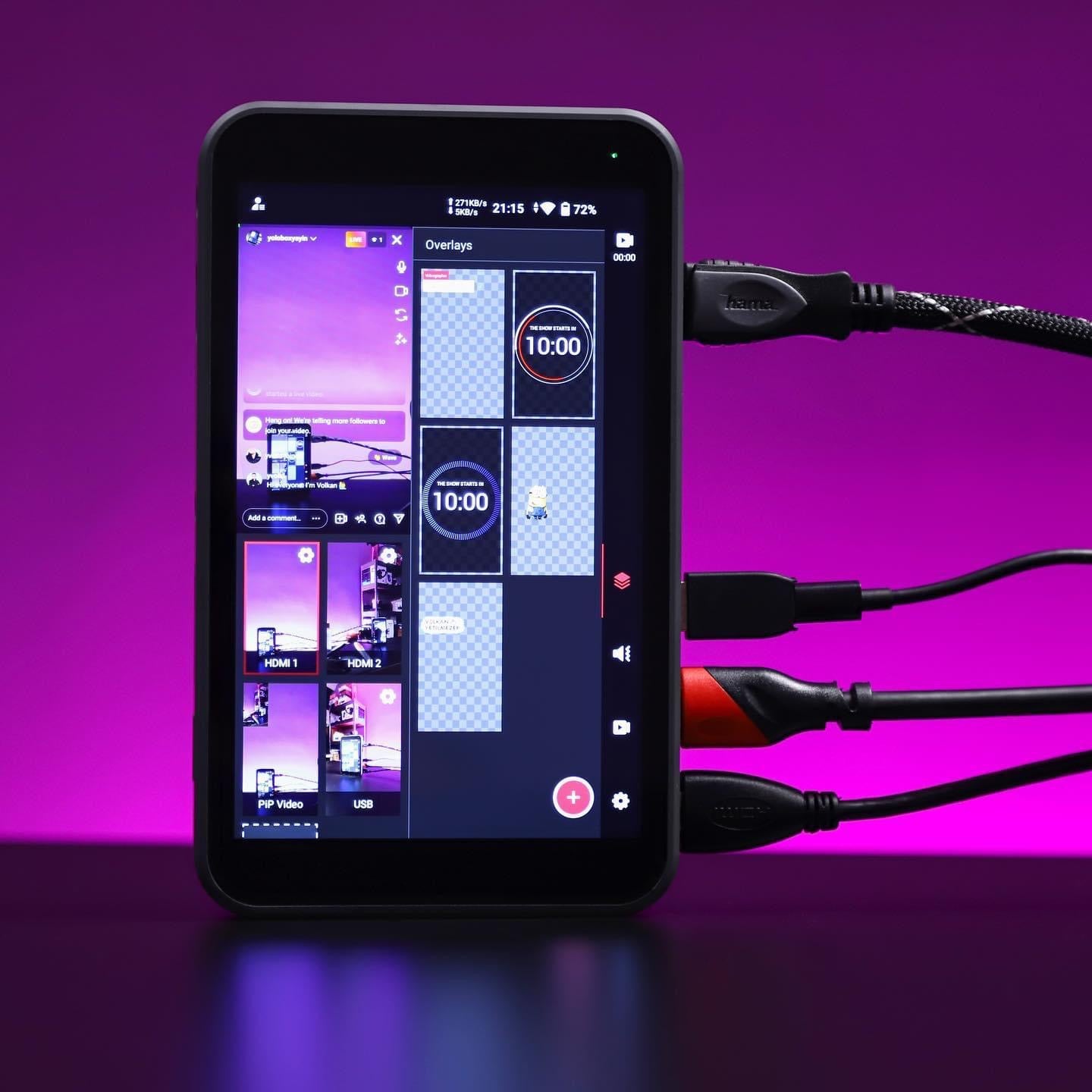

• All-in-One: Encoder, Switcher, Recorder, and Monitor

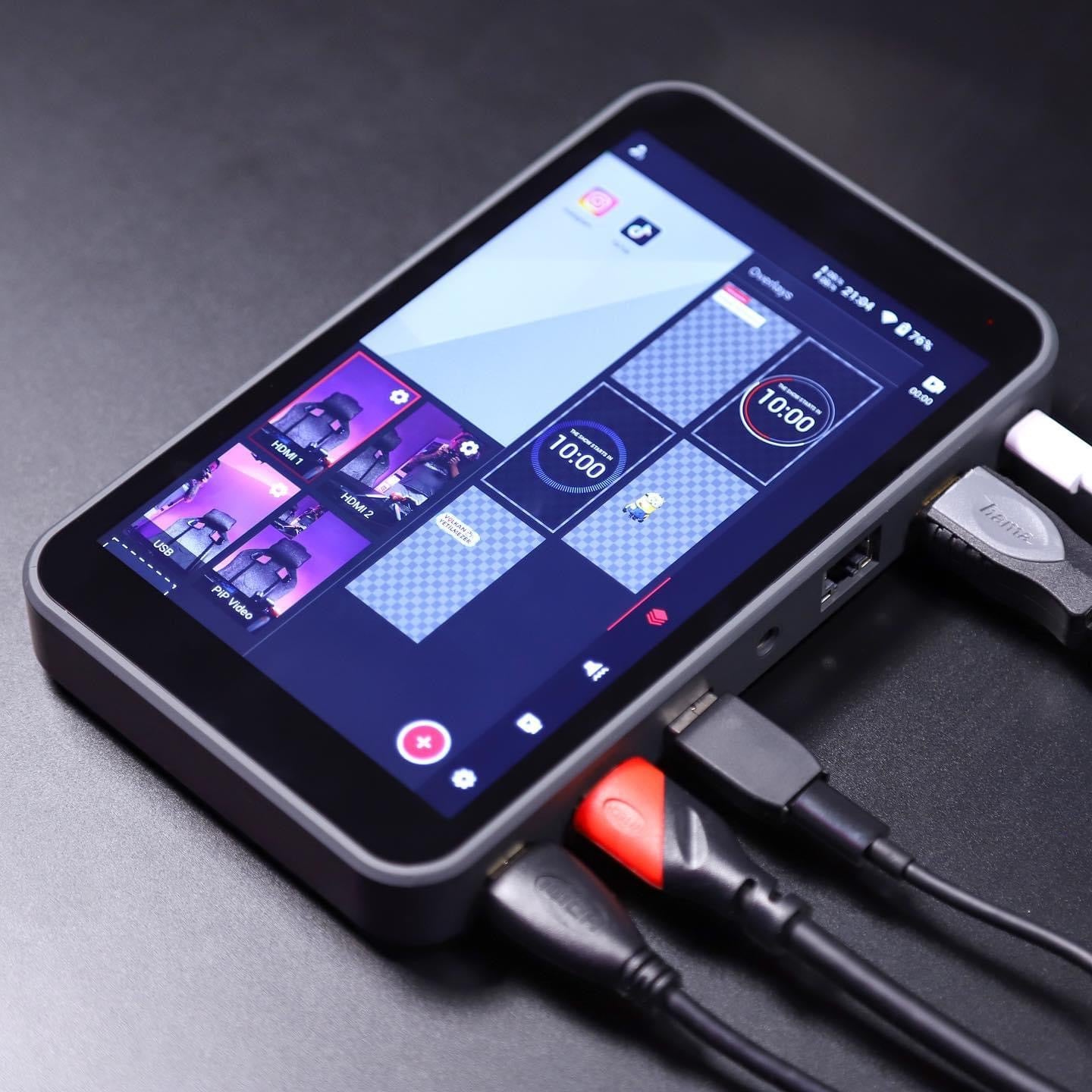

• Multiple Capture Sources: 2 HDMI + 1 USB In + SD Card
• Running on Android OS: No computer or OBS required
• 3 Ways to Connect: Wifi, 4G LTE, Ethernet

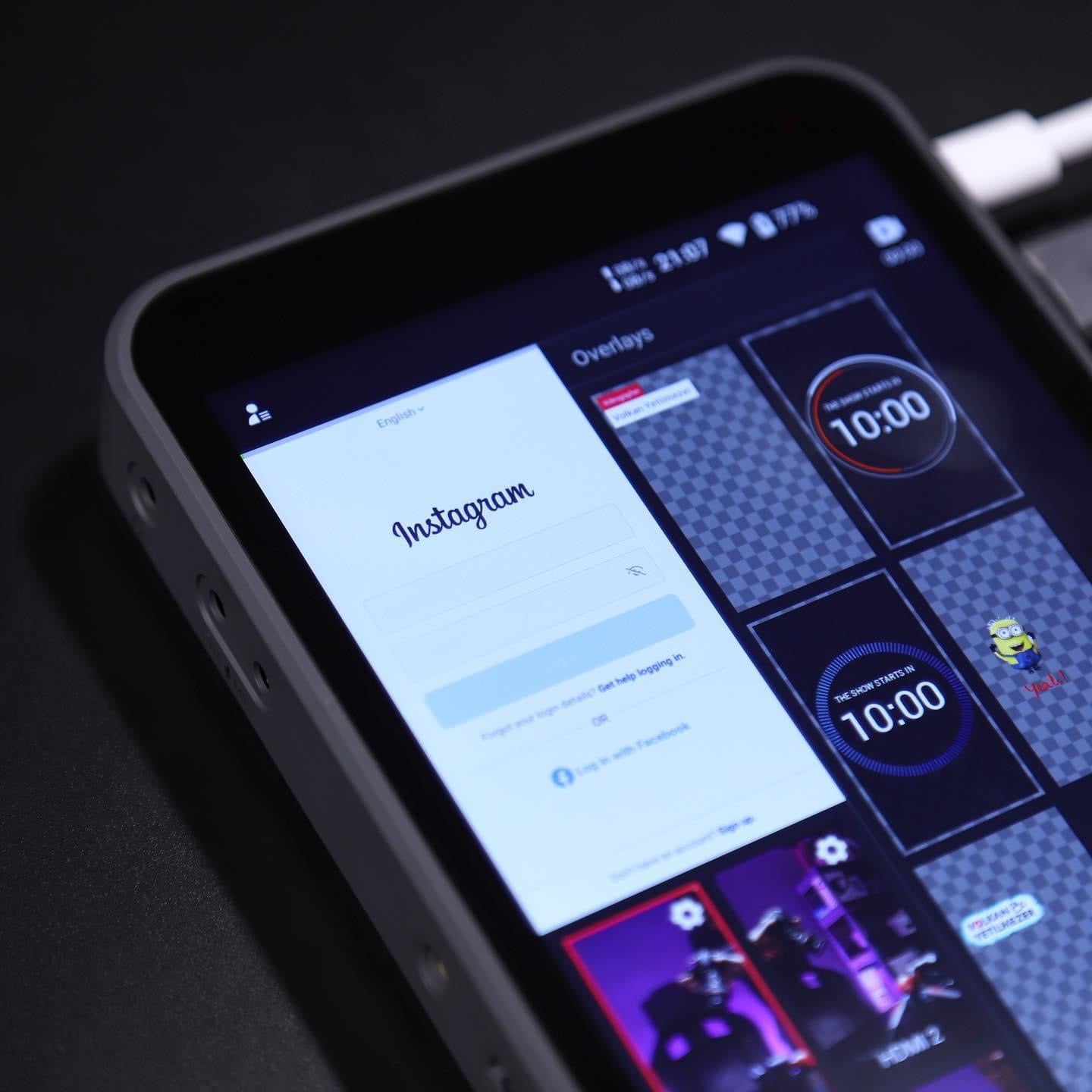

• Total Touch Screen Control: Operate intuitively as your smartphone
• Internal Battery: Lasts for 3+ hours
• Portable and Mobile: Compact size, fits into a backpack
• Live On The Go: Entire mobile live stream studio, in one box

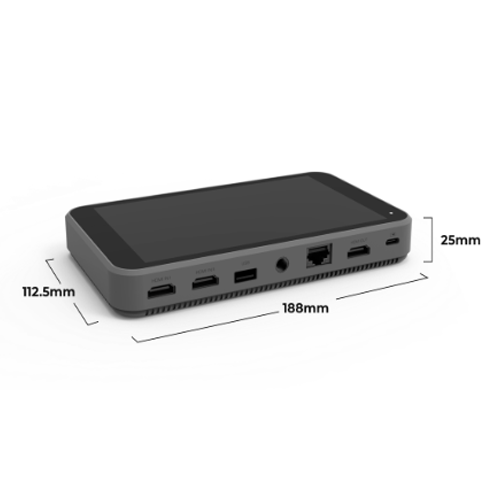

Dimensions & Weight
Height: 25mm
Width: 112.5mm
Length: 188mm
Weight: 600g

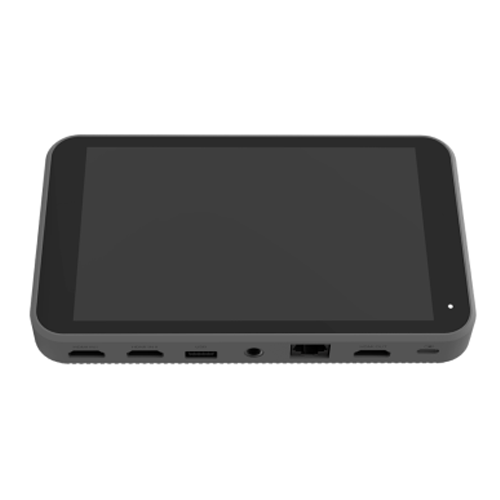

Ports
HDMI IN: Video input
HDMI IN: Video input
USB-C: Video input (Please note in some USB webcams, only video can be captured.)
1/4" Screw Hole: Mount Instream Mini with camera
ETHERNET PORT: Connect to Internet by Ethernet cable
HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
USB-C: Only for charging
AUDIO OUT: Connect with 3.5mm monitor headphones
LINE IN: Stereo, connect to electric guitar or synthesizer
MIC IN: Mono, connect to microphone for recording

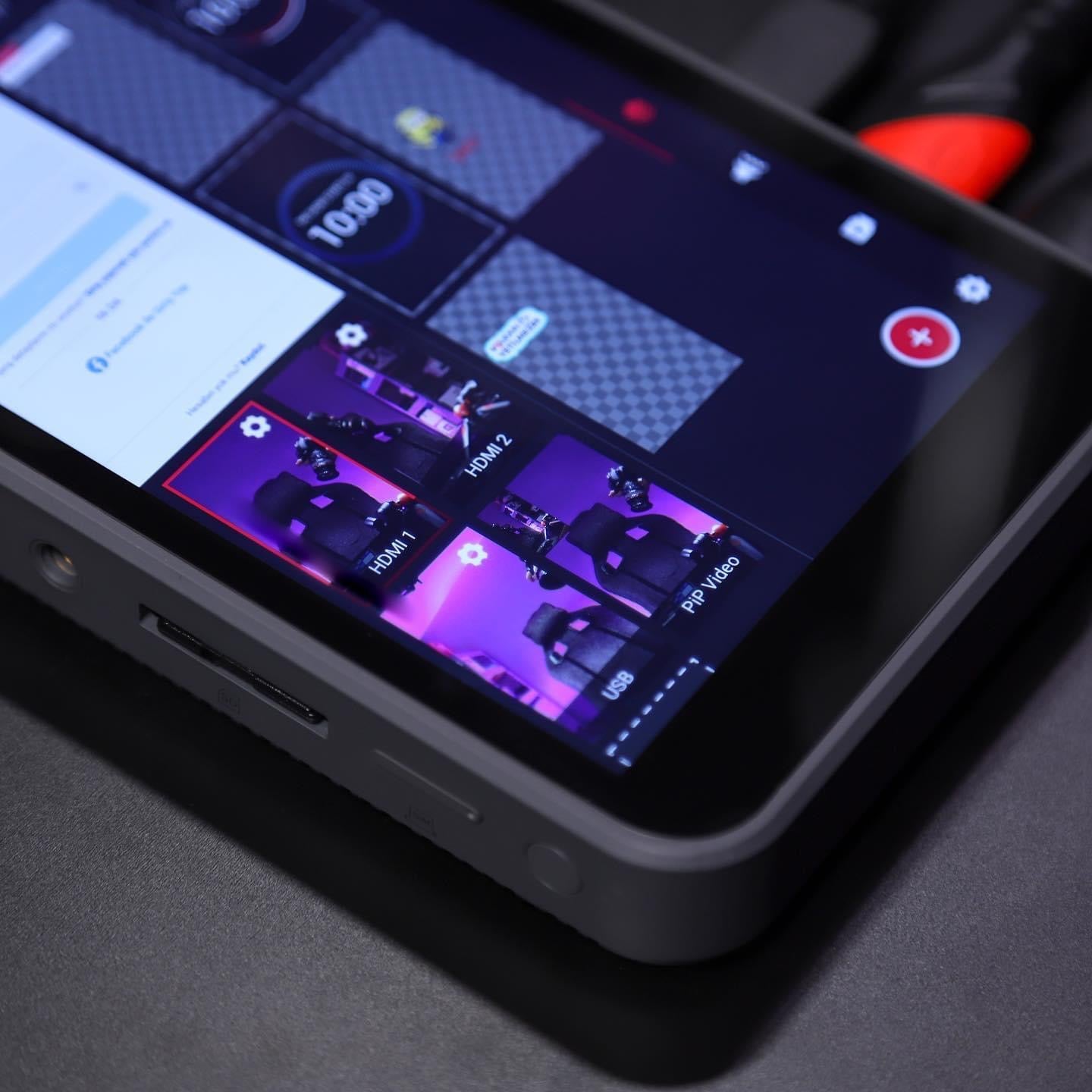

SD Card Slot: Used for recording and loading graphics
SIM Card Slot: Insert SIM card to connect to the Internet
Power Button: Turn on and turn off

Encoded Format
Video Encoded Format：H.264
Audio Encoded Format：（AAC)44.1K 2Ch 16bit
Video Recorded format：MP4
Audio Input Format：32KHZ/44.1KHZ/48KHZ :16bit
Live Broadcast Resolution：480P/720P/1080P
Frame Rate: Up to 60 fps

Video Storage
Storage Card Type：SD Card
Storage Card Type：SD Card
File System for SD Card: FAT32, exFAT, NTFS

Network Connection
WiFi: 2.4G/5G
4G Network: Global standard
SIM Card Size: Nano card

CPU
QualComm Snapdragon 845, 8-core Processor

Power
Power Interface：Type C, Quick Charge 3.0
Battery Capacity：10000mAh
Input power rating: DC5V 3A,9V 2A,12V 1.5A
Power Consumption: ＜18W

Transmission
Network Protocol：RTMP/RTMPS

Working Environment
Operating Temperature：0℃-40℃
Operating Humidity: 15%-85%, No Condensation
