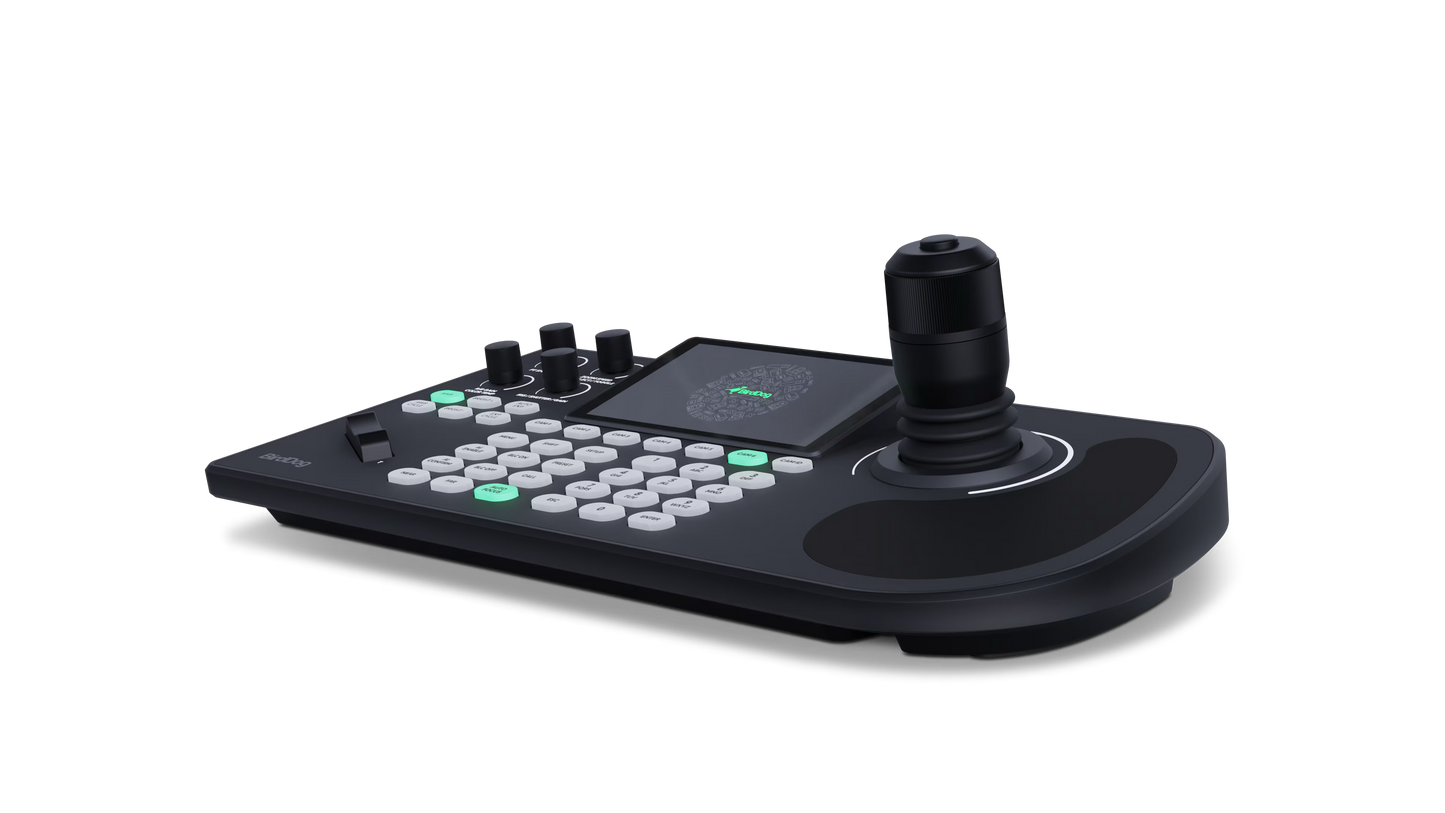

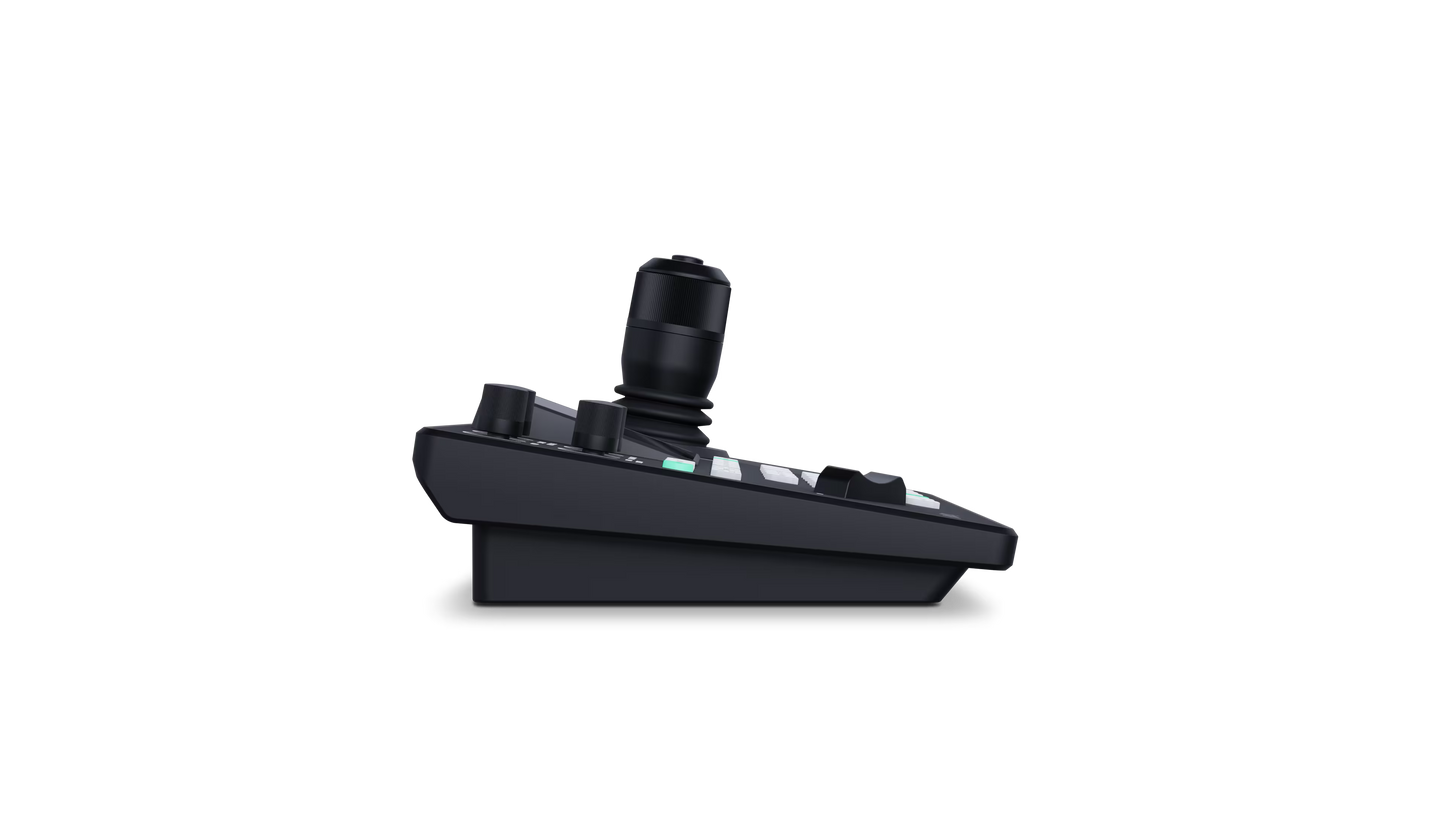

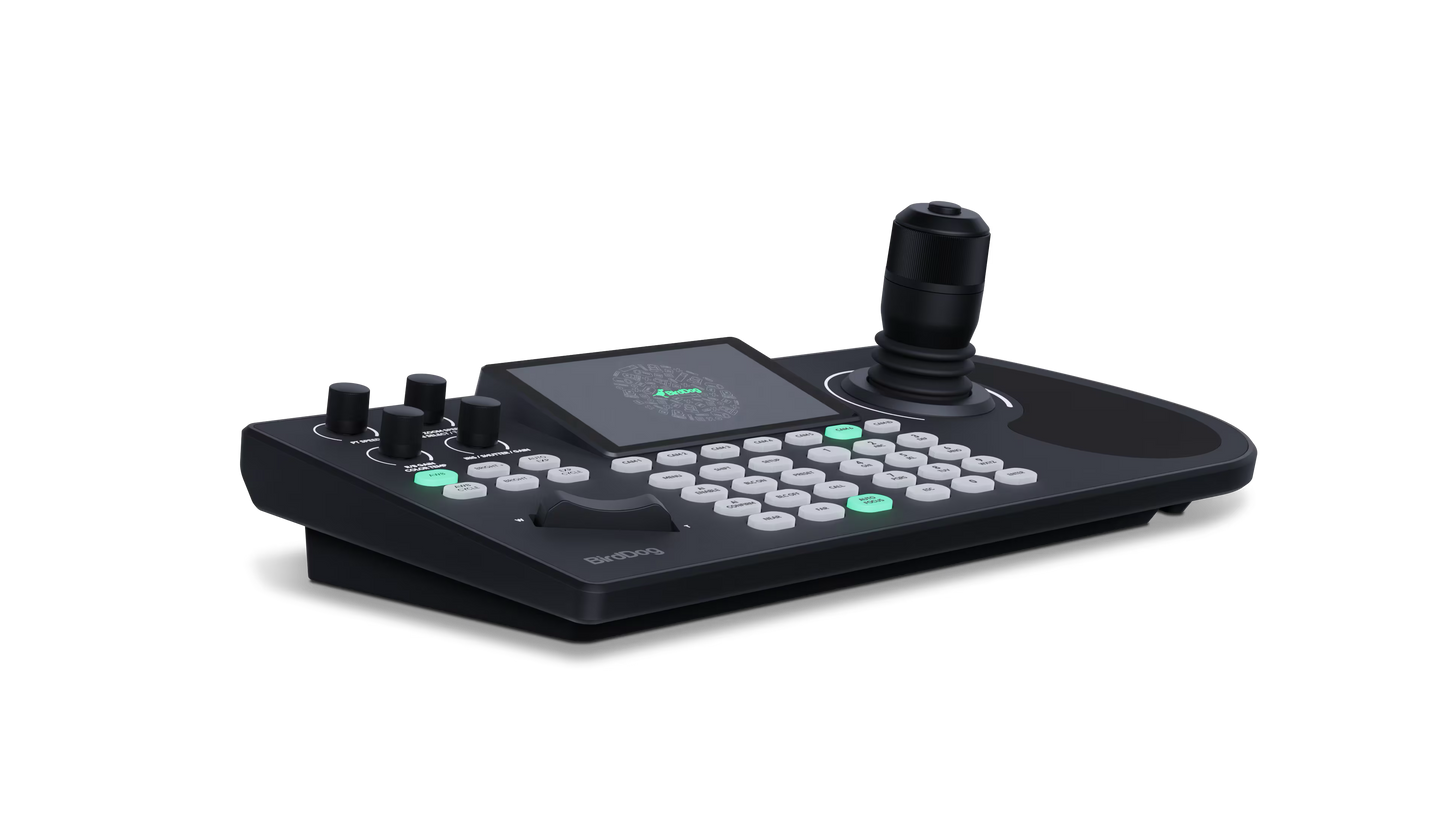

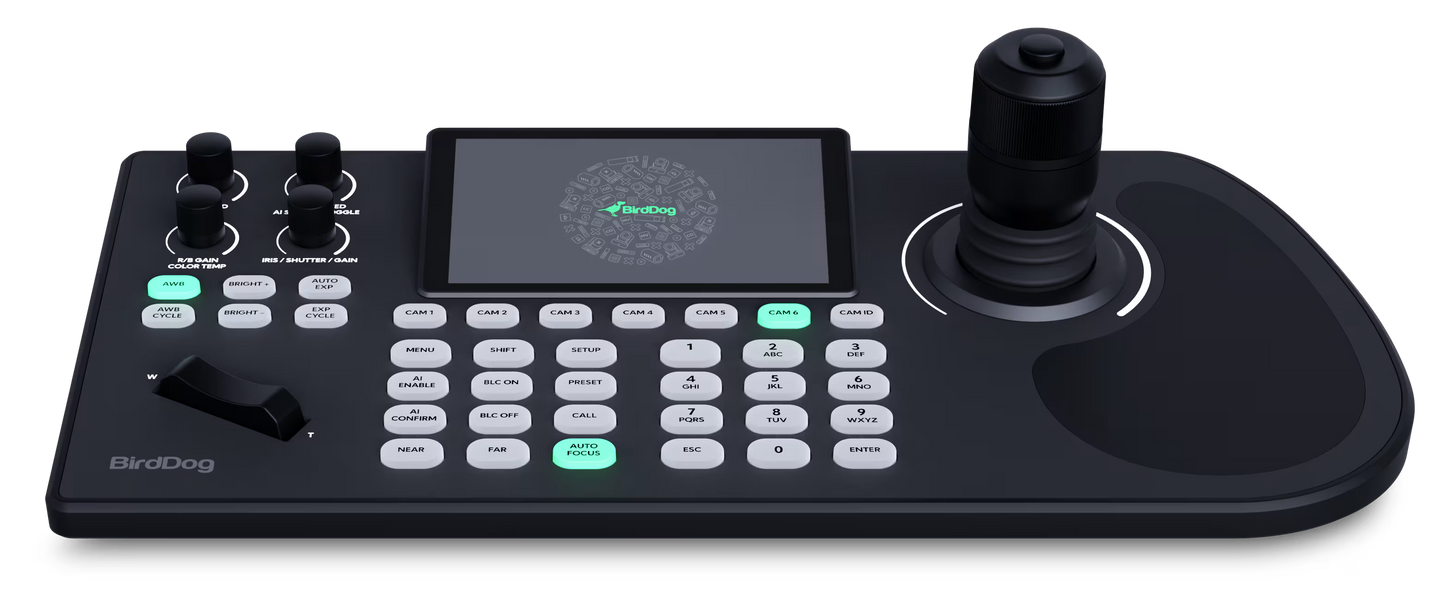

BirdDog KBD PTZ Controller with Integrated Screen

BirdDog KBD Controller: Precision, Comfort & Control

The BirdDog KBD Controller is the ultimate tool for PTZ camera operators, designed for durability, ease of use, and enhanced workflow efficiency. Its rugged, ergonomic build ensures comfort during long production hours, while the large display provides real-time monitoring of up to four cameras at once.

The streamlined menu grants direct access to essential functions like camera pairing, eliminating unnecessary menu diving. With a built-in tally display, it seamlessly integrates with mixers like TriCaster and vMix, showing live camera feeds directly on the keyboard for effortless switching.

With NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity, the BirdDog KBD adapts to any setup. Plus, its eco-conscious design—crafted from ocean-bound plastics—reflects BirdDog’s commitment to sustainability. Packed with enhanced features like joystick calibration, refined access, and improved configuration, the KBD delivers professional-grade performance at an unbeatable price.

All-Day Comfort

Designed for professionals, the KBD features an ergonomic layout with a built-in hand rest and tactile controls, ensuring comfort and precision throughout extended use.

Expanded Screen for Instant Camera Control

Monitor up to four cameras simultaneously or focus on one in full screen. Seamless pairing and effortless switchingare just a button press away, with improved tactile feedback for smooth, intuitive transitions.

Industry-First Camera Setting Sync

Adjust one camera to your exact preferences, then instantly copy those settings to another camera of the same model (BirdDog X series feature). No more manual adjustments—just faster, consistent setups for higher production efficiency.

Direct Access to Key Functions

Forget endless menu scrolling. KBD’s intuitive layout brings you straight to camera pairing, switching, and configuration, making operation faster and more efficient. Built based on real user feedback, it delivers a truly user-friendly experience.

Super-Fine Control Mode

For precise on-air adjustments, activate fine-tune mode, which increases joystick sensitivity by 10x—transforming reframing from a challenge into a creative, seamless process.

Built-in Tally Borders for Effortless Switching

Switching between cameras is as simple as a single press, with tactile buttons providing instant feedback. Integrated with TriCaster and vMix, the built-in tally border highlights the live camera directly on the keyboard—so you stay focused without needing extra monitors.

Ultimate Connectivity Meets Eco-Friendly Design

Equipped with NDI, VISCA, ONVIF, RS-232, and RS-422, the KBD seamlessly fits into any workflow. Crafted with ocean-bound plastics and recyclable aluminum, it’s an innovation that’s both powerful and sustainable.

Affordable Innovation

Built on user insights, the BirdDog KBD delivers advanced features at a lower price than its predecessor—offering unmatched comfort, control, and sustainability for the modern PTZ camera operator.

This revision enhances readability, flow, and engagement while keeping it professional and informative. Let me know if you’d like any tweaks! 🚀

Camera Control

• PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
• Fine PTZ Control: VISCA-IP, NDI
• Focus Control: Auto Focus, Manual Focus buttons
• Auto Exposure: Direct Button
• Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
• Auto White Balance: Direct Button
• Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
• Auto Focus: Direct Button
• Manual Focus: Direct Button (Near/Far)
• BLC (Backlight Compensation): Direct Button
• Zoom Ring on Joystick: Yes (enable/Disable)
• Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
• AI Camera Mode Control: Camera Dependent, supported
• Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)

Camera Access

• Max. Cameras support: 255
• Direct Camera access keys: 6
• Direct Preset access keys: 10
• Max Preset support: 255 per camera
• OSD Camera Menu: Menu Button / Interaction with Joystick

Display

• Display Resolution: 1280x720
• Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
• Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
• IP Video CODEC support: h.264, h.265
• Tally Borders: Selectable, Multiview and Full Screen mode
• On Screen Menu: Fully configurable
• Light/Dark Mode: YES

NDI Support

• NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
• NDI Multiview: NDI HX2, NDI HX3
• NDI Router: Yes, follows current active camera
• NDI Discovery: Supported
• NDI Access Manager: Supported
• NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)

Setup/Configuration

• WebUI: BirdUI for setup and firmware updates
• Light/Dark Mode: YES
• API-based Camera Selection: YES

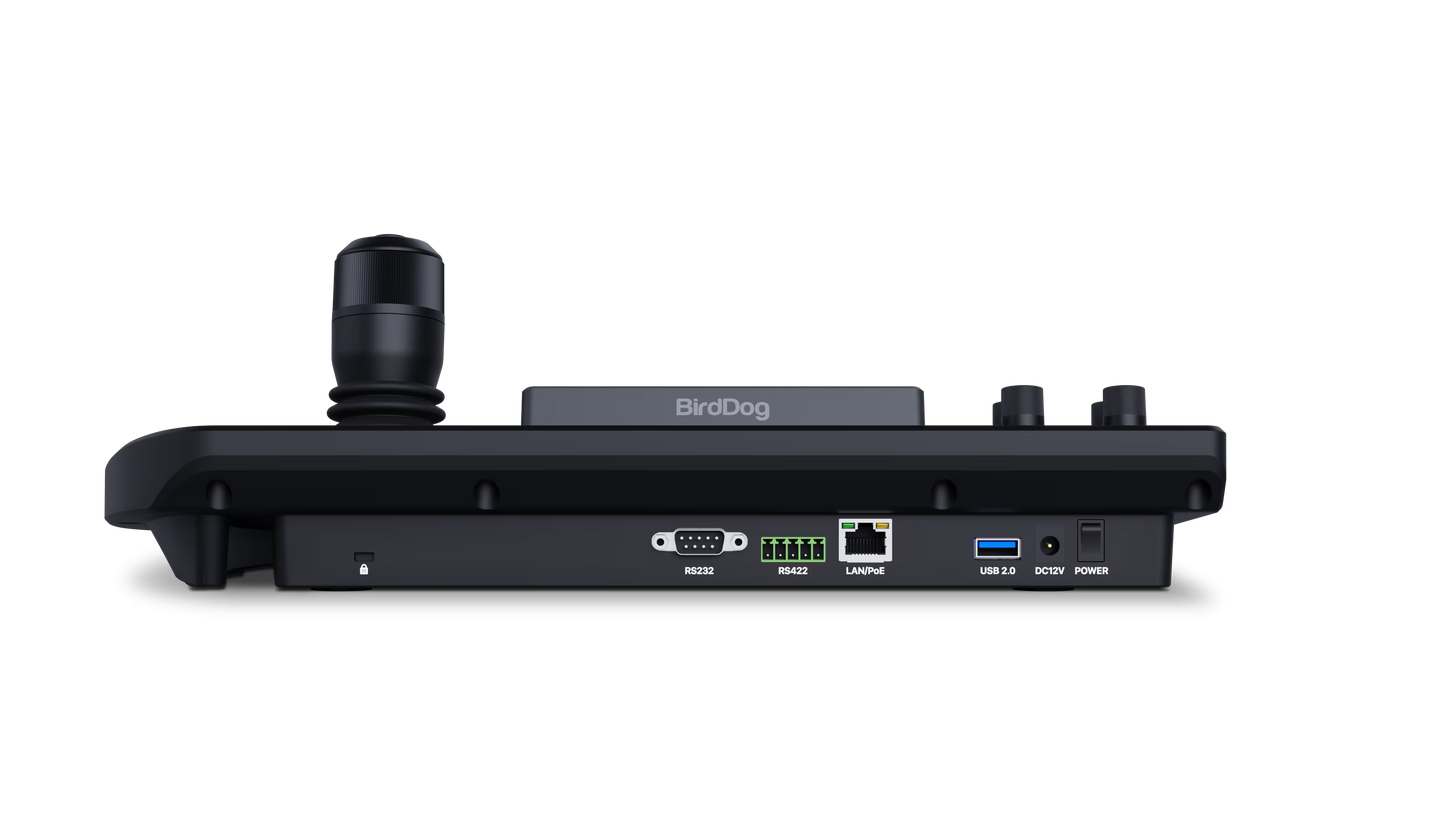

Serial Connections

• RS-232: D-Sub connector (9-pin)
• RS-422: Phoenix connector

Mechanical

• Joystick Type: 4D (Integrated Trigger button)
• Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
• Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
• Zoom Rocket: Spring loaded, adjustable
• Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
• Construction Material: Aluminium; OBP Ocean-Bound Plastic
• Integrated Carry Handle: YES
• Operating Temperature: -10°C - +55°C; 14°F - 130°F
• Storage Temperature: -10°C - +55°C; 14°F - 130°F
• Operating Humidity: 20% - 80% (Non-condensing)
• Storage Humidity: 0% - 90% (Non-condensing)
• Power Supply: PoE (802.3af), DC12V
• Power Consumption: ≤5W
• Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in
