BIRDDOG 4K QUAD

Next Level NDI® Tools.

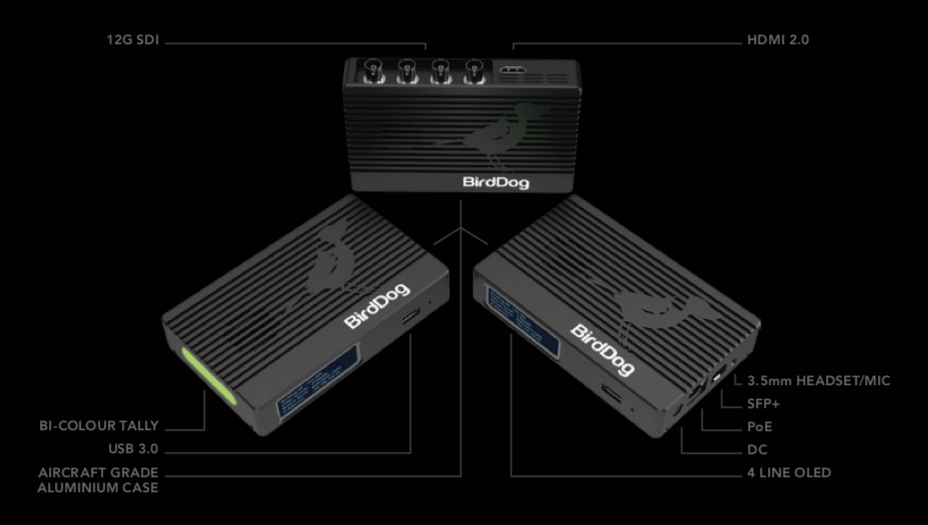

Following on from the award-winning HD NDI® products, the 4K Family has been engineered from the ground up for real-world users. Built around BirdDog’s custom NDI® silicon chip and housed in an aircraft-grade aluminum case, features include 12G SDI and HDMI 2.0 inputs and outputs, built-in cross converter, SFP+ port for 10GbE connectivity, active loop outs, audio intercom system, NDI® tally system, PoE, and compatibility with BirdDog’s Comms Pro and Central Pro apps.

Encode & Decode up to 4Kp60.
With support for all resolutions up to 4Kp60, including all HD resolutions, Encoding and Decoding 4K Full NDI® has never been easier.

12G & HDMI 2.0 connections.
All SDI connectors on the 4K line are 12G SDI, including all four SDI connectors on 4K Quad. All the HDMI connectors are 2.0 for maximum compatibility with your sources and destinations.

SFP+ for 10GbE & long range.*
Industry-standard SFP+ connection allows for short, medium, and long-range connections over fiber and supports Ethernet protocols from 1GbE to 10GbE

NDI Tally that just works.
A full Tally system is built right into the 4K Family and it requires zero configuration. Includes a built-in large Tally light for your on-air talent to easily see which camera is live, plus user-selectable Tally borders on loop out.

Cross Converter.
All 4K products include a built-in cross converter and the 12G SDI inputs can be looped out the HDMI 2.0 port and any of the HDMI 2.0 inputs can be looped out the 12G SDI.

PTZ Control.
With the optional USB to Ethernet dongle, you can control any PTZ camera that supports NDI®, NDI|HX, or Visca over IP.



RESTful API. DIY automation.
Download the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.
