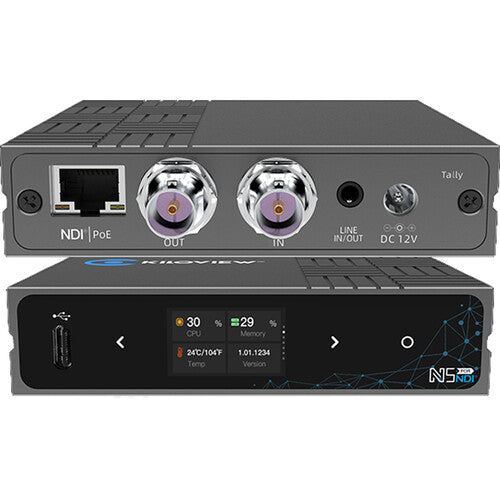

KILOVIEW N5 3G-SDI/NDI BI-DIRECTIONAL CONVERTER

Kiloview N5/N6 NDI Converter: Your Comprehensive Bi-Directional Solution

The Kiloview N5/N6 NDI converter is a versatile bidirectional device that effortlessly supports 3G-SDI/HDMI input (as an encoder) for NDI high bandwidth and NDI|HX2/3. It also offers a loop-through capability for monitor viewing. Additionally, it handles 3G-SDI/HDMI video output (as a decoder) from any NDI sources originating from various cameras, software, or devices, irrespective of the brand, whether it's NDI high bandwidth or NDI|HX2/3.

Highlighted Features:

1. Power over Ethernet (PoE)
2. LCD Display with Large Tally
3. PTZ Control
4. 3.5mm Audio Line In/Out
5. Multi-Channel Audio
6. Intercom Functions
7. Centralized Management

N6: Embrace the NDI World with Ease

The N6 offers a seamless gateway to the captivating NDI world, promising low-latency, high-quality imagery with versatile options.

N5: Dedicated to 3G-SDI Input

For users seeking 3G-SDI input compatibility, the N5 serves as an ideal solution.

2-in-1 Encoding and Decoding

Kiloview N5/N6 supports both NDI High Bandwidth and NDI|HX2/3 encoding and decoding within this compact device. The user-friendly interface allows you to effortlessly switch between encoding and decoding modes, accommodating a wide range of workflows.

- In encoding mode, N5/N6 encodes a 3G-SDI/HDMI signal into an NDI High Bandwidth/NDI|HX2/3 video stream.
- In decoding mode, N5/N6 automatically adapts to NDI High Bandwidth/NDI|HX2/3, delivering output through 3G-SDI/HDMI.

Audio and Intercom

Enjoy audio flexibility with support for 3.5mm analog audio line in/out or embedded audio. The N5/N6 can handle up to 4 channels of audio encoding. Additionally, it facilitates voice intercom between all Kiloview devices and your control PC/phone, thanks to the Kiloview Intercom server.

Built-in LCD Screen and Touch Buttons

The N5/N6 features a 1.14-inch LCD screen with touch buttons, enhancing the user experience. The LCD screen provides real-time visibility into connectivity, IP address, CPU usage, memory status, resolution settings, temperature, and tally status.

Seamless Switching

In decoding mode, you can preset up to 9 NDI sources from the web interface and select the desired source for output without experiencing black screens, flashes, or lag.

PTZ Control

Kiloview N5/N6 supports PTZ control through USB to serial RS232/485/422 and PTZ control over IP with various protocols. The best part is that no additional cables are required.

Control with a USB Keypad

In decoder mode, you can assign NDI sources to numbers 0-9. By connecting a USB keypad to the decoder, you can effortlessly choose the output source with a single press. The USB keypad can even serve as a cost-effective PTZ camera controller.

Power It Your Way

The N5/N6 can be powered through Power over Ethernet (PoE) with a single cable connection. Its wide DC input range (from 5V to 18V) also allows for powering through USB or a camera battery, offering flexibility and convenience.

Video Input

• 1*3G-SDI

Video Output

• 1*3G-SDI ( Loop-out )

Audio Ports

• 1*3.5mm Line In
• 1*3.5mm Line Out

Network Connections

• 1*RJ45 1000Mbps Ethernet port (with PoE)

Video Formats

• 1920x1080P23/24/25/50/59/59.94/60
• 1280x720p30/50/59/60
• 1280x1024P60
• 1152x900P60
• 1152x864P60
• 1024x768P60
• 800x600P60

NDI Codec Features

• NDI Highbandwidth: YCbCr 4:2:2 8bit 125Mbps in 1080p60
• NDI|HX: YCbCr 4:2:0 8bit 80Mbps in 1080p60

Tally

•  Yes


Power Supply

• PoE/DC/D-tap


Intercom

• Yes


PTZ Control

• Yes


DHCP

• Yes


Management

• WebUI/KiloLink Server


Power Consumption

• 6w


Operating Temperature

• -20~45℃


Storage Temperature

• -20~70℃


Size

• 100mm*80mm*24 mm


Weight

• 272g
