YOLOLIV YOLOBOX ULTRA PORTABLE MULTI-CAMERA ENCODER / SWITCHER / MONITOR / RECORDER

Key Features

1. High-quality 4K Streaming and ISO Recording
2. Versatile Connectivity with 4 HDMI and 2 USB Inputs, HDMI Output
3. Comprehensive Audio Support with Line and Mic Inputs, and Audio Output
4. NDI and SRT Input and Output for Seamless Integration
5. USB Webcam Output and External Hard Drive Compatibility
6. Multiple Streaming Options: Ethernet, Wi-Fi, 4G LTE, and USB Dongle
7. Built-in battery with a capacity of up to 75.48Wh (Up to 6 hours of use)
8. Network Bonding for Enhanced Reliability (Supports 3 Sims, Wi-Fi, and Ethernet)
9. Supports H.264 and H.265 Encoding
10. Multistreaming Capabilities to Facebook, YouTube, and RTMP (up to 3 platforms)
11. Multistreaming to TikTok and Instagram (2 vertical platforms)
12. All-in-One Functionality: Encoder, Monitor, Switcher, and Recorder
13. Live Switching from up to 10 Sources
14. SD Card for Recording and Storing Media Assets
15. Bright 8" Touchscreen LCD Display with 650 cd/m² Brightness

Elevate your live stream production to new heights with the YoloBox Ultra – the Portable Multi-Camera Live Streaming Studio that combines an Encoder, Switcher, Monitor, and Recorder all in one. This advanced device empowers you to create professional live streams from virtually any location, offering an expanded set of features and capabilities.

The YoloBox Ultra allows for 4K streaming, ISO recording of all video inputs separately, and horizontal and vertical streaming, effectively merging the best features of YoloBox and Instream. You can simultaneously stream to three horizontal platforms like Facebook, YouTube, Twitch, or custom RTMP destinations, or two vertical platforms including Instagram and TikTok. The YoloBox Ultra boasts numerous upgrades over the YoloBox Pro, including four HDMI inputs, two USB inputs, 4K streaming and recording, a Qualcomm 865 encoder/processor, H.265 encoding, a high-capacity 20,000mAh internal battery, and an 8" LCD touchscreen display with a brightness of 650 cd/m².

Furthermore, the YoloBox Ultra inherits various features from the YoloBox Pro, such as customizable graphics, Chroma key support, inviting guests, instant replay, auto-switching, video cropping, multi-views (PIP, Split View, Side by Side, News Layout, Triple), background music integration, fade-to-black transitions, audio mixing, web URL overlays, and the ability to input PDFs and images as video sources, among other capabilities.

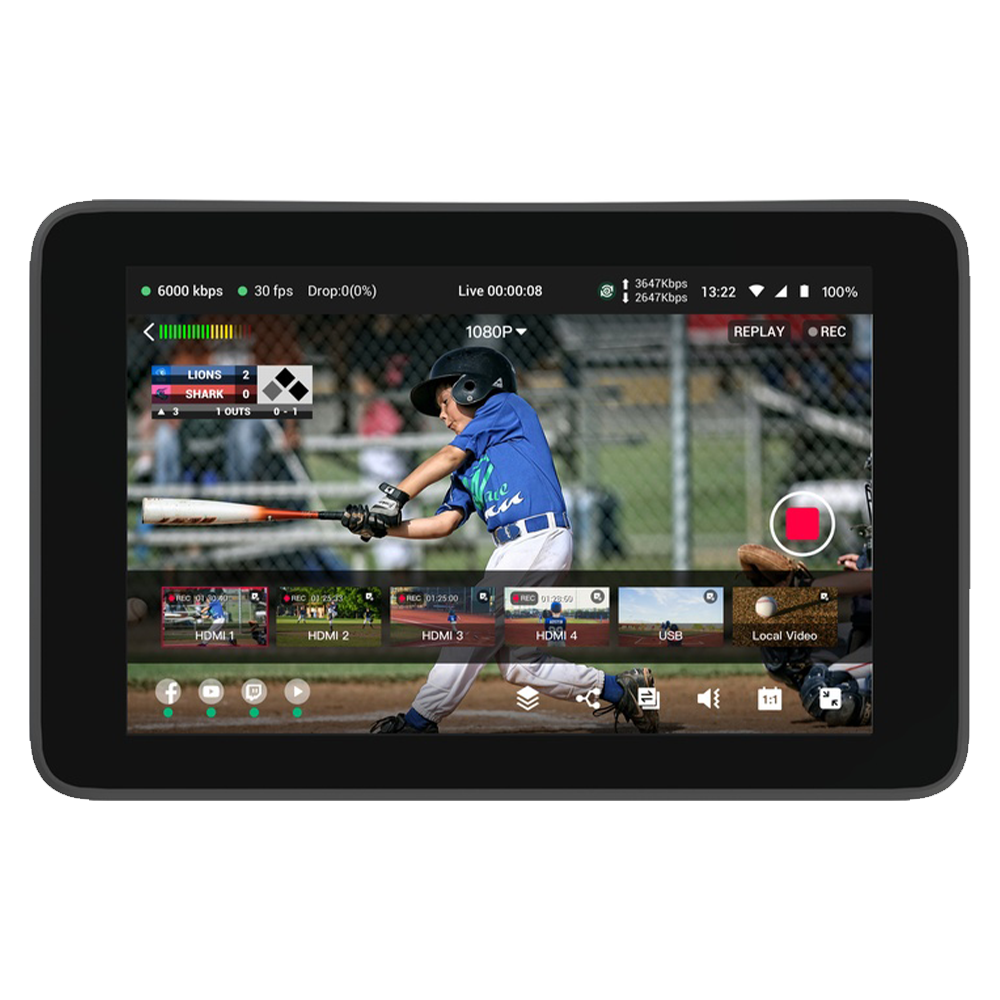

With the YoloBox Ultra, you can aggregate up to five internet sources, including 4G LTE cellular, Wi-Fi, Ethernet, and a USB Dongle, into a single, faster, and more reliable connection to ensure a stable live stream. The intuitive 8" touchscreen display allows you to monitor the streaming image, input streams, and control interface, enabling easy switching between different sources with a simple touch. Additionally, the YoloBox Ultra provides an HDMI output, allowing you to display your stream locally on an optional HDMI display for convenient monitoring.

Supporting input resolutions up to 4K with H.264 and H.265 codecs, the YoloBox Ultra offers the flexibility to stream resolutions from 480p to 4K to any destination, both horizontally and vertically. You can record all video inputs and the program video in high-quality .mp4 format directly to the built-in SD card or a USB flash drive with a capacity of up to 1TB, giving you full post-production flexibility.

The YoloBox Ultra combines powerful features, versatile connectivity options, and a user-friendly interface, making it the ultimate companion for live streaming. Elevate your live broadcasts, captivate your audience, and unlock limitless creative possibilities with this all-in-one solution.

Highlighted Software Features:

- Inviting guests
- Chroma key
- Instant replay
- Auto-switching
- Video cropping
- Multi-Views (PIP, Split View, Side by Side, News Layout, Triple)
- Background music
- Fade-to-black transitions
- Audio mixing
- Web URL overlays
- Ability to input PDFs and images as video sources
- Built-in graphics (Titles, logos, images, lower-thirds, countdown timers, social overlays, web URL overlays) for enhancing your stream
- Import pictures and videos from an SD card or a USB flash drive
- Internal recording to SD card or USB flash drive (up to 1TB)
- Direct integration with YouTube, Facebook, and RTMP platforms
- Encoding options including CBR, VBR, and CQ
- Customizable graphic overlays

Additional Features:

- 4K Streaming: Enjoy high-quality 4K streaming, providing four times the resolution of 1080P for stunning video quality.
- ISO Recording: Capture and store each video input separately, allowing for flexibility in post-production.

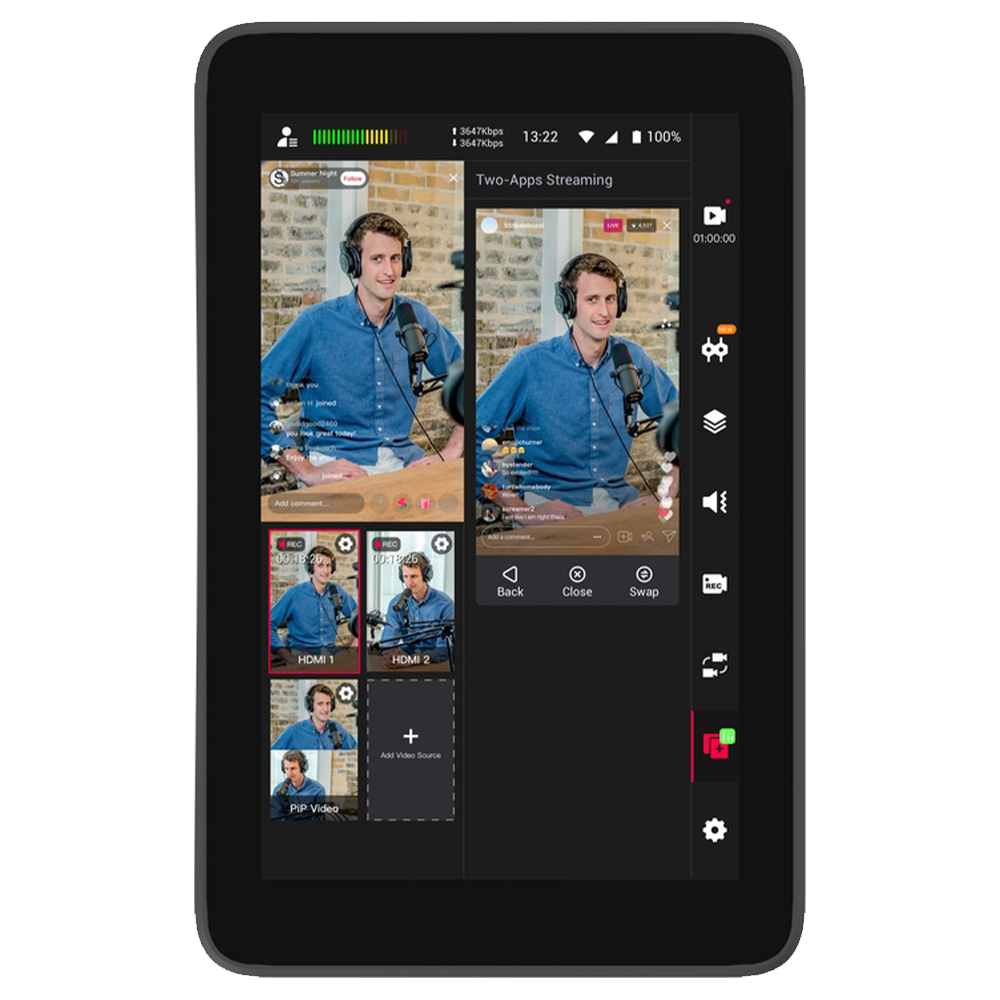

- Horizontal & Vertical Streaming: Stream to both horizontal and vertical platforms, catering to a wide range of audiences.
- Network Bonding: Combine multiple internet sources for a faster and more reliable connection.
- Touchscreen Control: Utilize the 8" LCD touchscreen display for intuitive streaming and control.
- Stream YoloCast Events: Set up YoloCast events ahead of time for seamless outdoor live streaming.
- Video/Instant Replay: Enhance sports productions with real-time instant replay and save replays for later use.
- USB Webcam Out: Output video and audio to your computer for virtual meetings and guest invitations.
- Auto-Switching: Automatically rotate between various video sources, providing continuous and dynamic content.
- Video Cropping: Resize and adjust video input for a customized viewing experience.
- Wireless Phone Camera/Inviting Guests: Collaborate with remote guests and enhance interactivity.
- Switching and Encoding Functions: Switch between multiple sources and encode your content for live streaming.
- Graphic Overlays: Add branding elements, graphics, and scoreboard countdown timers to your stream.
- Audio Mixing: Fine-tune audio levels for high-quality sound.
- Internet Connectivity: Connect via Ethernet, Wi-Fi, or cellular service for seamless streaming.
- SD Card Input: Incorporate pre-recorded videos and media assets into your live stream.
- PDF & Images as Video Sources: Load PDFs and images as local sources to enhance your content.
- Battery Life: Enjoy up to 6 hours of use with the built-in 20,000mAh battery.

The YoloBox Ultra offers a comprehensive solution for all your live streaming needs, delivering exceptional performance and versatility in a single device.

Dimensions & Weight
Height: 27.1 mm
Width: 140 mm
Length: 219 mm
Weight: ≈ 981 g

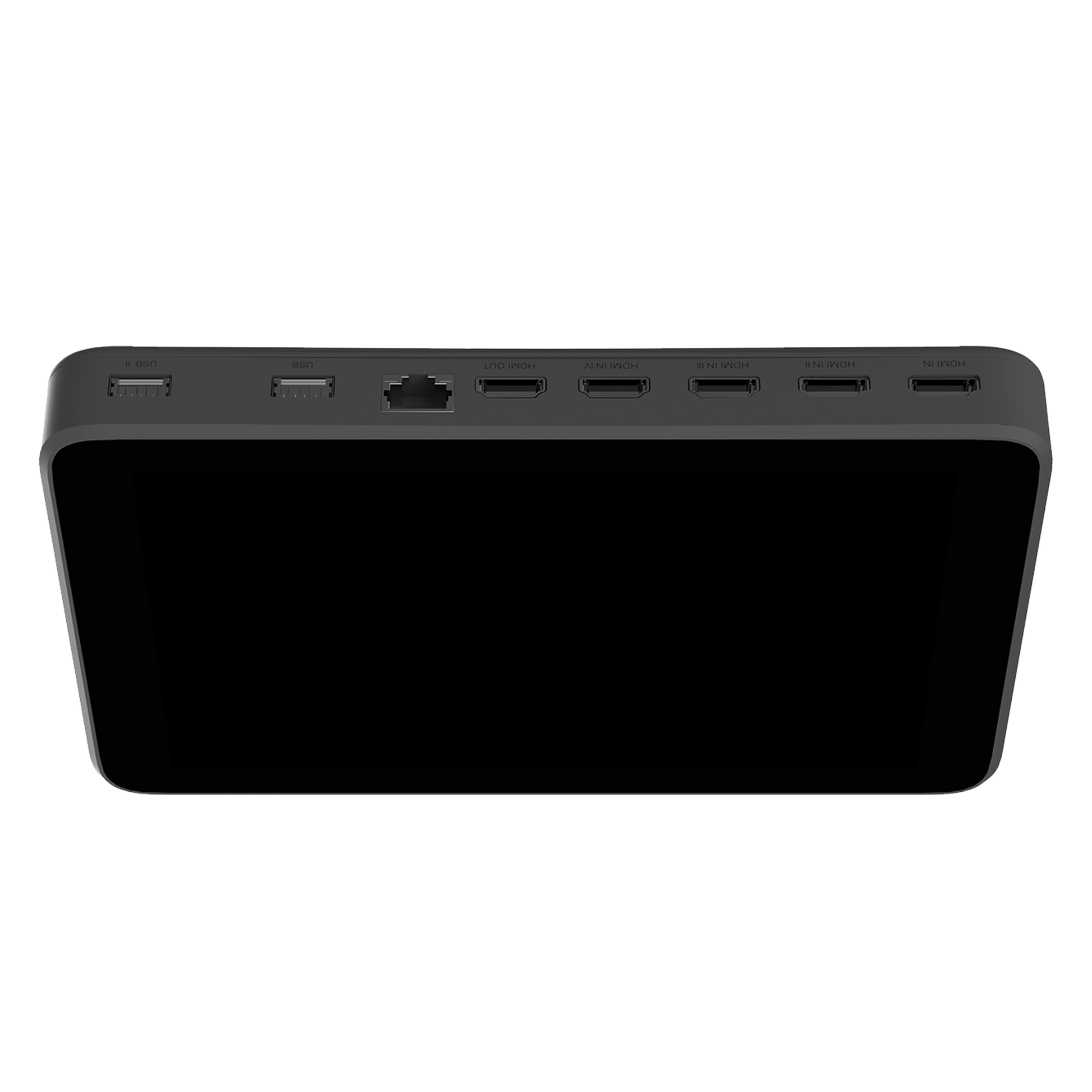

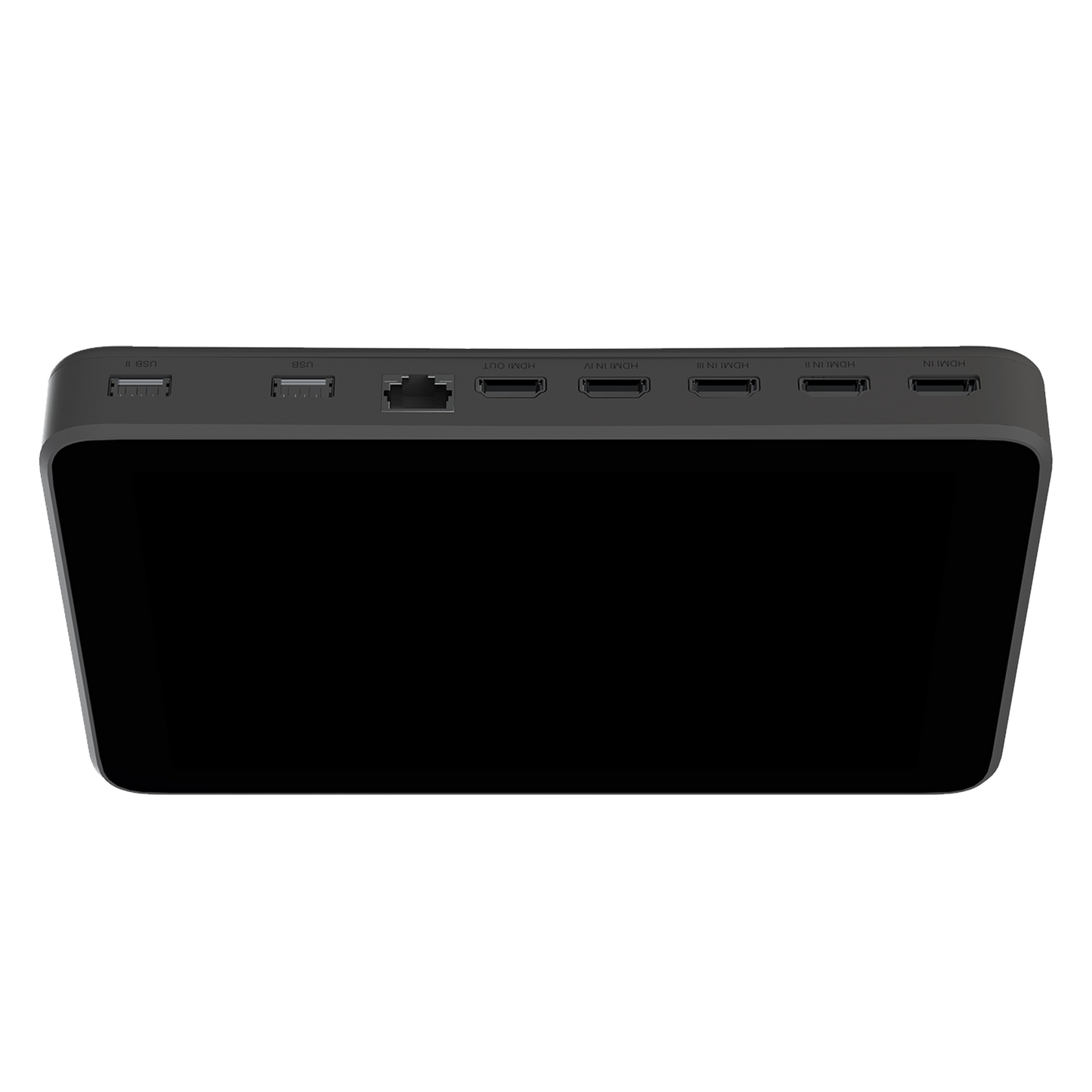

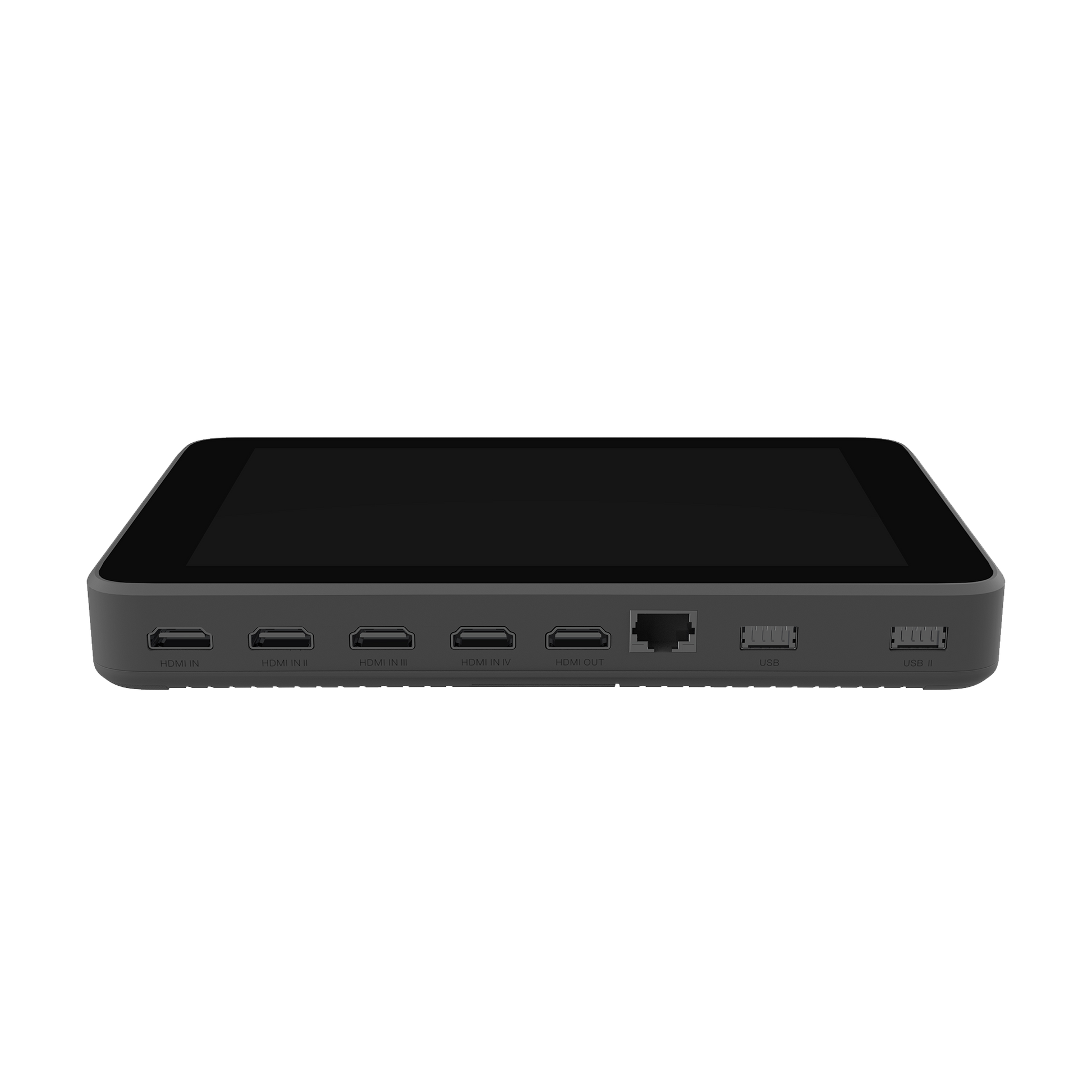

Ports

• HDMI IN 1: Video input
• HDMI IN 2: Video input
• HDMI IN 3: Video input
• HDMI IN 4: Video input
• HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
• ETHERNET PORT: Connect to Internet by Ethernet cable
• USB Type-A 3.0: Video input( Support: webcam; portable storage device ; wireless usb dongle.)
• USB Type-A 3.0: Video input ( Support: webcam; portable storage device ; wireless usb dongle.)
• USB Type-C: Only for charging

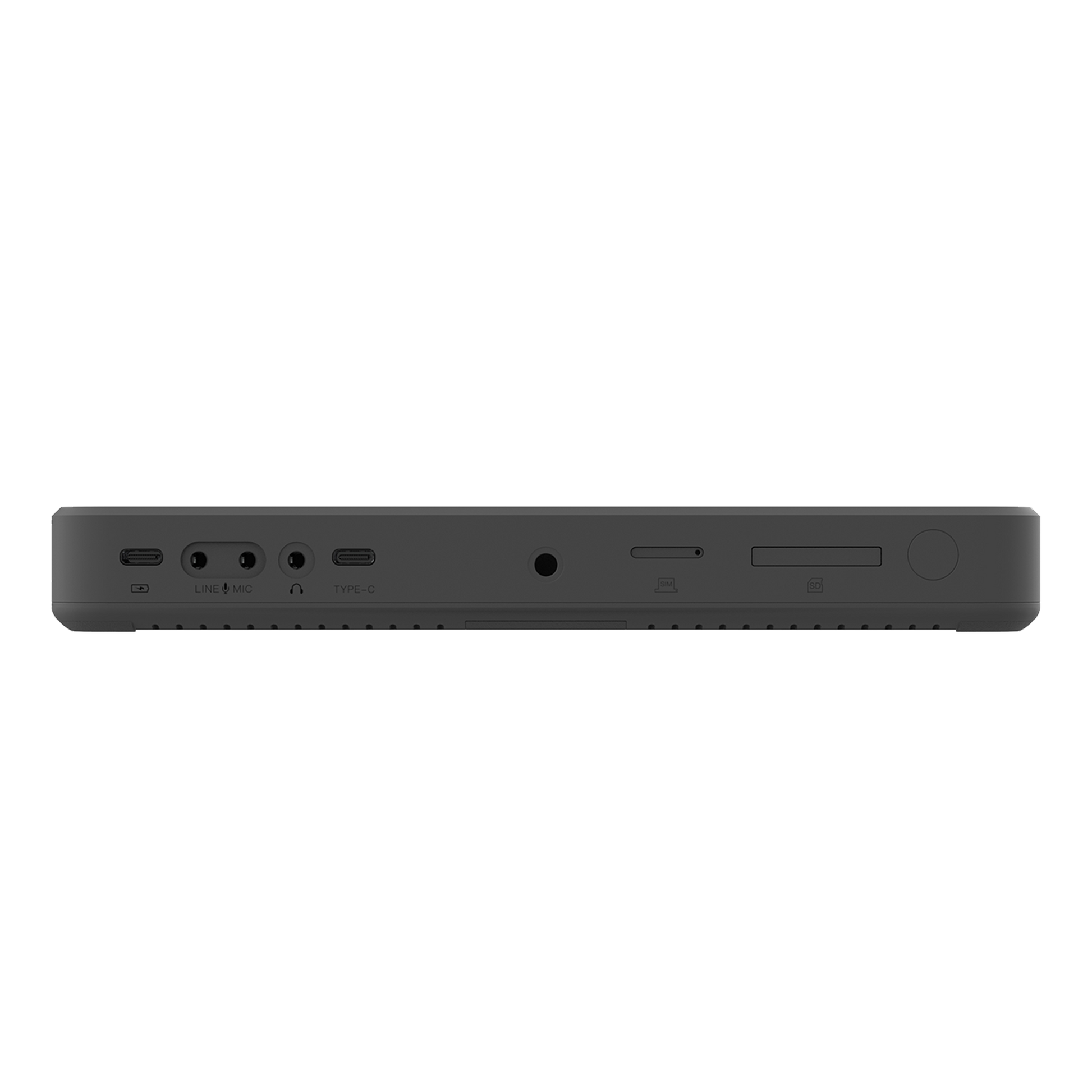

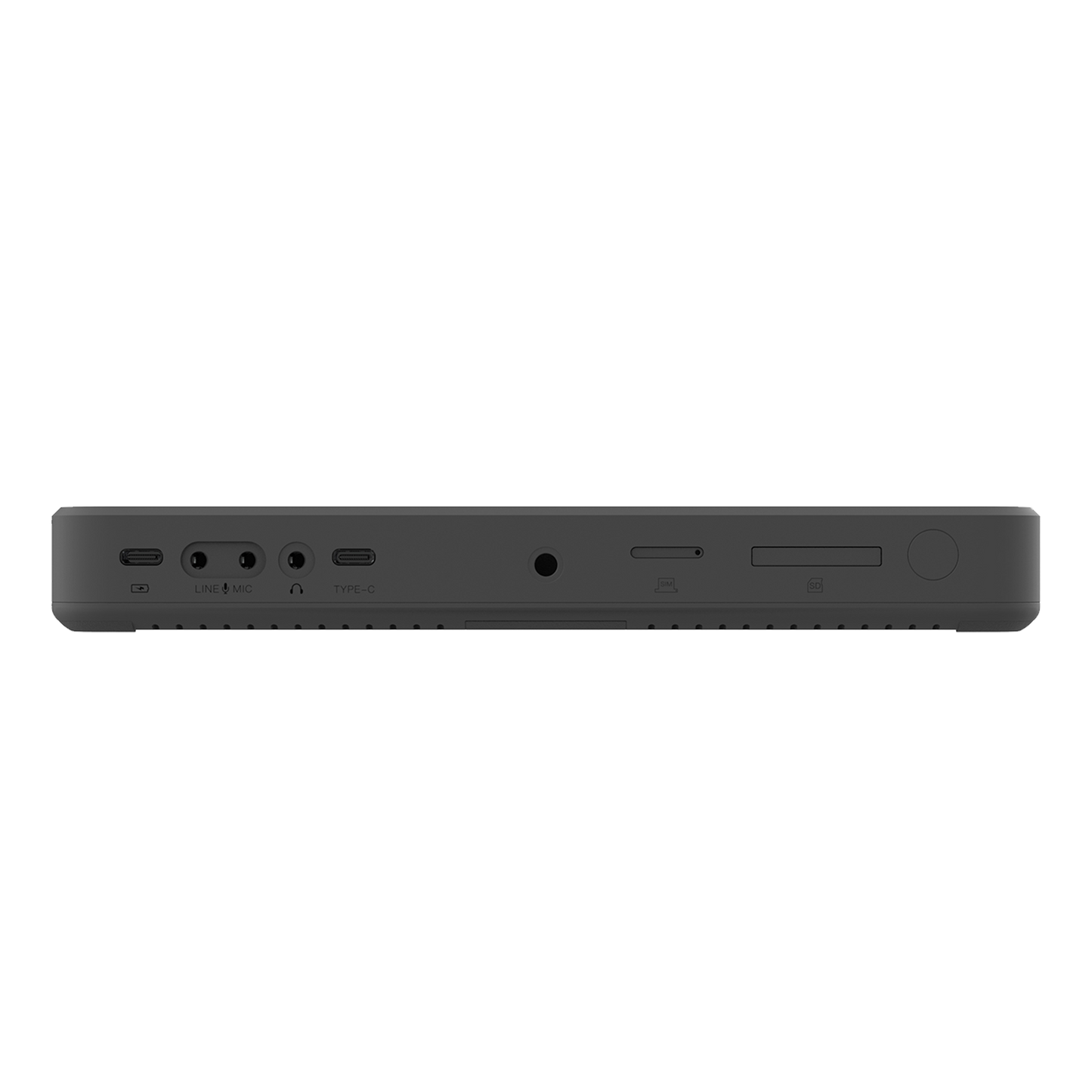

• LINE IN(3.5mm): Stereo, connect to electric guitar or synthesizer
• MIC IN(3.5mm): Mono, connect to microphone for recording
• AUDIO OUT(3.5mm): Connect with monitor headphones
• USB Type-C: A fully functional interface supports input
• 1/4'' Screw Hole: Mount Ultra with camera
• Nano-SIM Card Holder: Insert SIM card to connect to Internet
• SD Card Holder: Used for recording and loading graphics
• Power Button: Turn on and turn off

Input Power
DC5V/9V/, 12V/15V

Power Consumption
45W

Power Supply
USB Type-C

USB Rated Output
USB-A:5V/1A

Battery Capacity
6800mAh

Monitor Screen Size
8inch LCD Resolution: 1200*1920; Brightness: 650nits; Contrast ratio(1500:1), Viewing Angle (full viewing Angle), NTSC 80%

Local Video Inputs
HDMI,USB-A

Video Over Ethernet
RTMP/RTMPS/SRT

Video Input Connectors
HDMI,USB-A,RJ-45,USB Type-C

Video Input Aspect Ratios
16:9; 4:3; 1:1

Video Input Deinterlacing
No

Live Broadcast Video input Resolution
480p/720p/1080p(up to 60fps)/4k 30fps

Video Encoded Format
H.264 H.265

Video processing Bitrate control
CQ, VBR, CBR

Hardware-Accelerated Video Encoding
Optional

Video Output Signal Types
FLV-RTMP,HDMI,UVC

Video Output Connectors
HDMI OUT, USB-C

Video Output Streaming protocols
RTMP, RTMPS, MJPEG, SRT

Live Broadcast Video Output Resolution
480p/720p/1080p(up to 60fps)/4k 30fps

Analog Audio Input Connectors
Line In, Mic In, 3.5mm

Digital Audio Inputs
USB, HDMI, RTMP(From internet), Local video(From SD card)

Digital Audio Input Connectors
USB-A, HDMI, USB-C

Audio Input Mute
Yes

Audio Input Format
32KHZ/44.1KHZ/48KHZ :16bit

Audio Encoded Format
(AAC)44.1K/48KHZ 2Ch 16bit

Analog Audio Output
3.5mm headphone jack

Digital Audio Outputs
HDMI audio (Embedded), USB Audio (Embedded)

Record Formats
MP4

Wi-Fi
2.4G/ 5G（Support WiFi6）

4G Network
4G Network Countries & Frequency Band For  Users: [Variant for North America（US/Canada/Mexico)]
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
Notes: Mexico B4 For Non-US/Canada/Mexico
Users: (EU: Variant for EMEA/India/Korea/Taiwan/South
Asia/Latin/America/Australia/New Zealand)
Users: B1/B3/B7/(B8) Notes: Thailand B1/B3
Please note that the certification of Yolobox Mini is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region.

USB Communication Standard
USB 2.0 and USB 3.0

Ethernet Data Rate
10/100/1000M, half/full duplex with autodetect

SIM Card Size
Nano-SIM Card

SDCard format
FAT32(Under 128G), NTFS, EX-FAT

Operating Temperature
0℃-40℃

Operating Humidity
15%-85%, No Condensation
