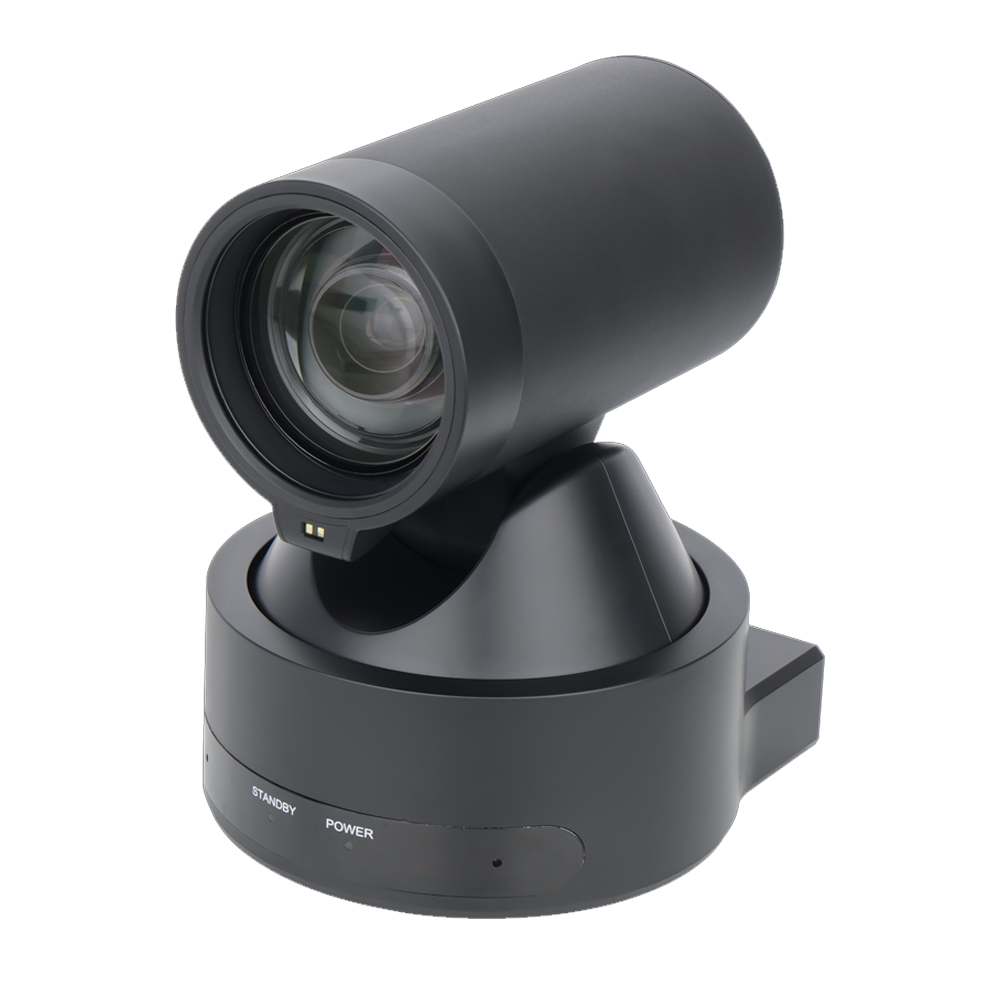

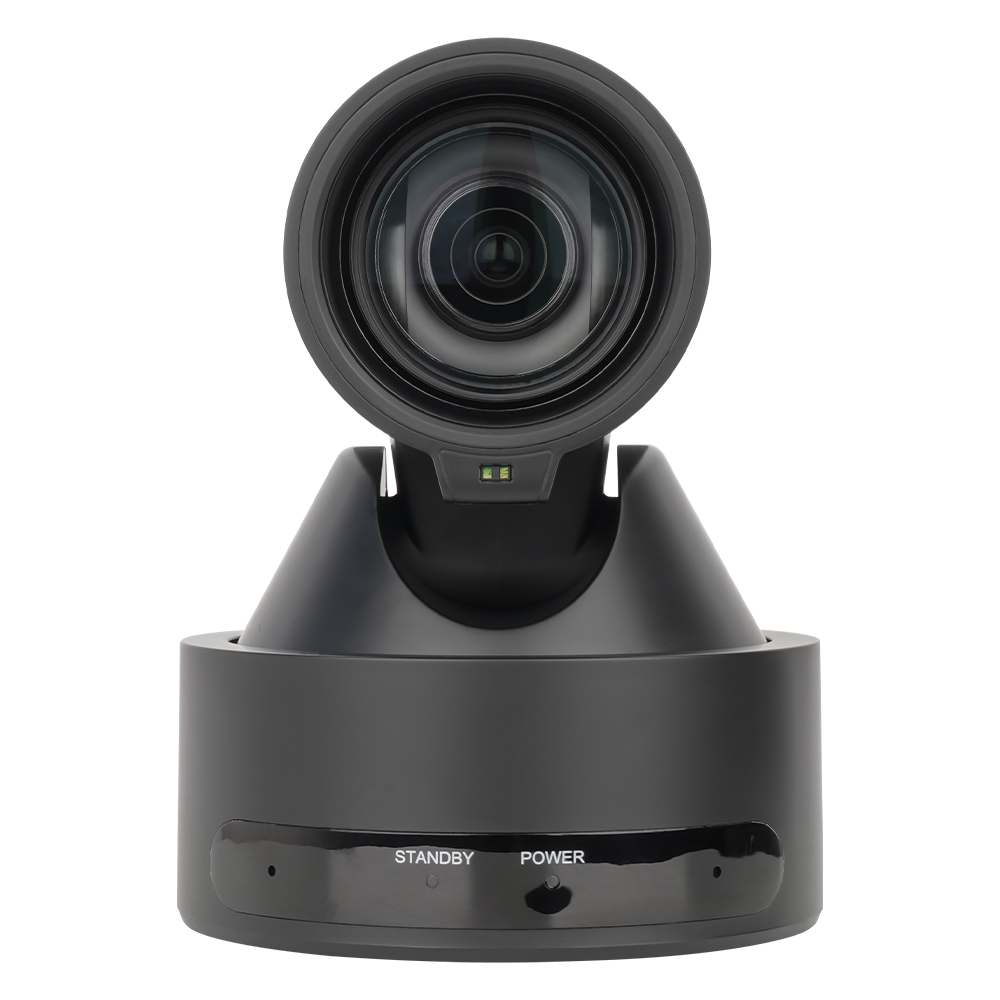

YOLOLIV 12X VERTICAM PTZ CAMERA FOR VERTICAL CONTENT

Vertical Video Made Easy.
Industry’s First Vertical PTZ Camera For Vertical Content Creation & Live Streaming.

VERTICAL VIDEO HAS TAKEN OVER.
Huge brands are all jumping aboard the vertical video train. Consumers consider brands that advertise with vertical video ‘more innovative’. If you aren’t posting a video in vertical, you’re falling behind.

SEIZE THE BIGGEST TRENDS IN VIDEO MARKETING

• 75% Of the contents are consumed vertically
• 2.5 Times more likely to skip a video that is not vertical
• 2.5 Times higher in terms of engagement

Switch Easily With Multiple Preset Positions
Store and recall 255 specific pan/tilt/zoom positions quickly with your cameras

Remote Control

• Support a wide rotation range of ±170° horizontally and of 30°~+90° vertically.
• Control the camera remotely for free angle rotation through the RS232 serial port.
• Perfect for one-man show. No additional crew needed.

TOF Instantaneous Auto Focus
Focus instantly and precisely

72.5° Wide-angle Lens With 12x Optical Zoom
Perfectly fit for panorama and close-up.

Professional Color Mode, HD Image Quality

• 4:2:2 10 bit PRO color mode
• 1/2.8-inch HD CMOS sensor
• 2.07 million effective pixels
• 1920x1080 images
• Camera Noise Reduction
• Backlight Compensation
• Stunning low light performance

CAMERA

Optical Zoom

• 12x

Video System

• 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50

Sensor

• 1/2.8-inch, CMOS, Effective Pixel: 2.07M

Scanning Mode

• Progressive

Lens

• 12x, f=3.5mm ~ 42.3mm, F1.8 ~ F2.8

Digital Zoom

• 16x

Minimum Illumination

• 0.5 Lux @ (F1.8, AGC ON)

Shutter

• 1/30s ~ 1/10000s

White Balance

• Auto, Indoor, Outdoor, One Push, Manual, VAR

Backlight Compensation

• Support

Digital Noise Reduction

• 2D&3D Digital Noise Reduction

SNR

• ≥55dB

Horizontal FOV

• 72.5° ~ 6.9°

Vertical FOV

• 44.8° ~ 3.9°

Pan Angle

• ±170°

Tilt Angle

• -25° ~ +30°

Pan Speed

• 1.61° ~ 75.56°/s

Tilt Speed

• 0.44° ~ 15°/s

Image Flip

• Support

Image Freeze

• Support

Preset Position

• 255

Preset Accuracy

• 0.1°

MIC Pick-up Distance

• 6m

USB FEATURES

Operate System

• Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android

Color System/Compression

• MJPG/YUY2

Video Format

• YUY2 (ISOC): 1080P@60fps (max.)
• MJPEG: 1080P@60fps (max.)

USB Audio

• Support

USB Video Communication Protocol

• UVC 1.1

UVC PTZ

• Support

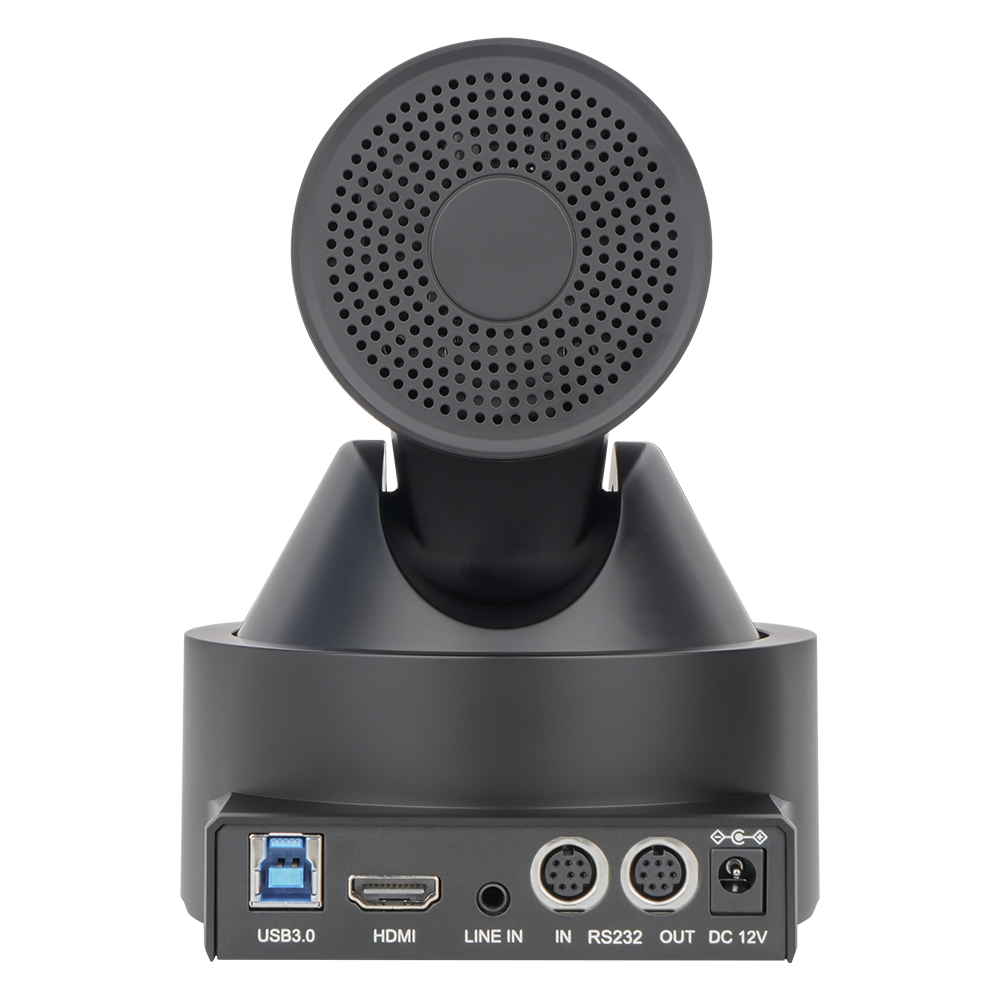

INTERFACES

USB Interface

• 1 x USB3.0: Type-B

HDMI Interface

• 1 x HDMI 1.4b

Audio Interface

• 1 x LINE IN, 3.5mm

Communication Interface

• 1 x RS232 IN: 8pin min DIN; Max. Distance: 30m; Protocol: VISCA/Pelco-D/Pelco-P
• 1 x RS232 OUT: 8pin min DIN; Max. Distance: 30m; Protocol: VISCA network use only

Power Jack

• JEITA type (DC IN 12V)

GENERAL SPECIFICATIONS

Input Voltage

• DC 12V

Input Current

• 1.5A (max.)

Operating Temperature

• -10°C ~ 40°C

Storage Temperature

• -40°C ~ 60°C

Power Consumption

• 12W (max.)

Dimension

• 128mm x 118mm x 157.9mm

Net Weight

• 1.0Kg
