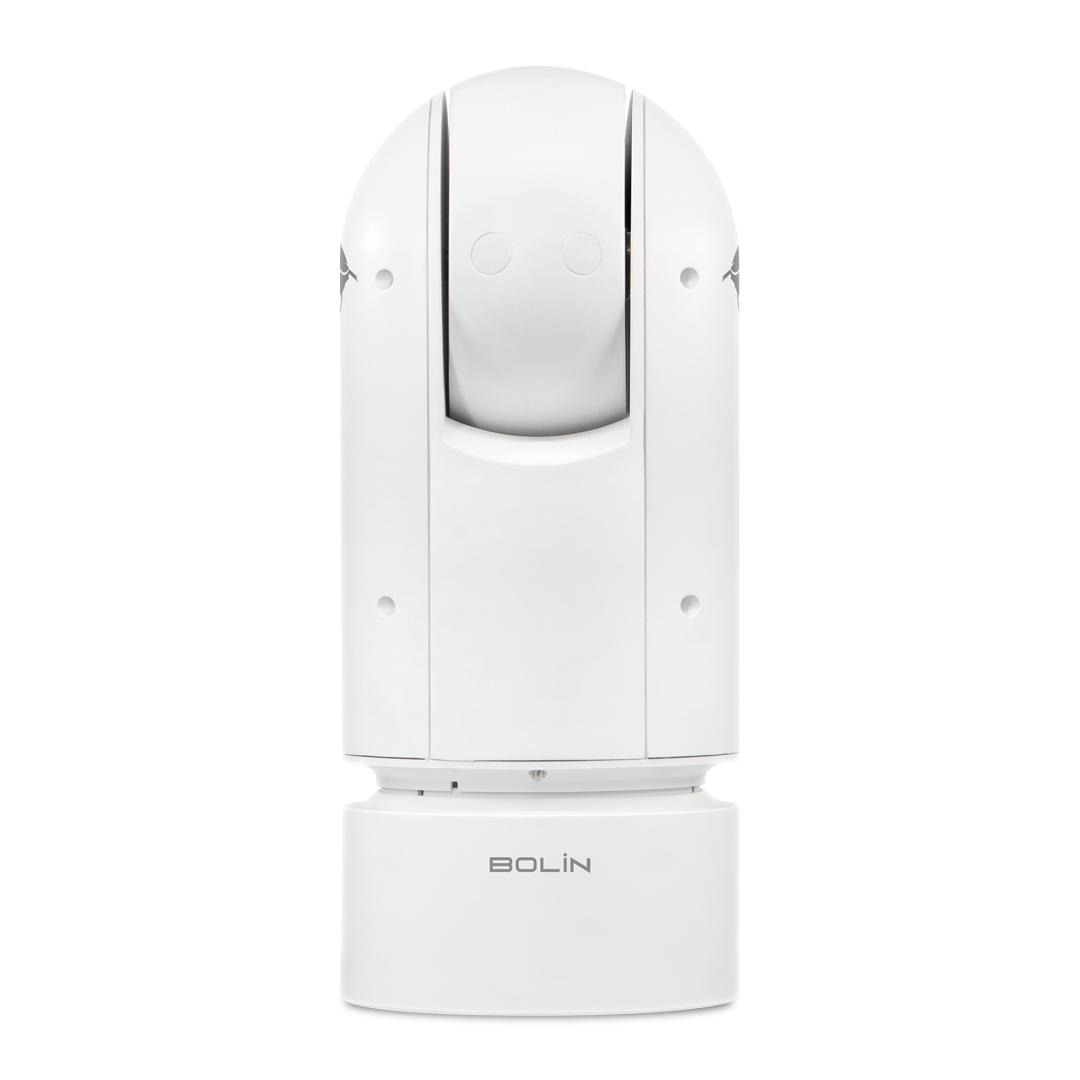

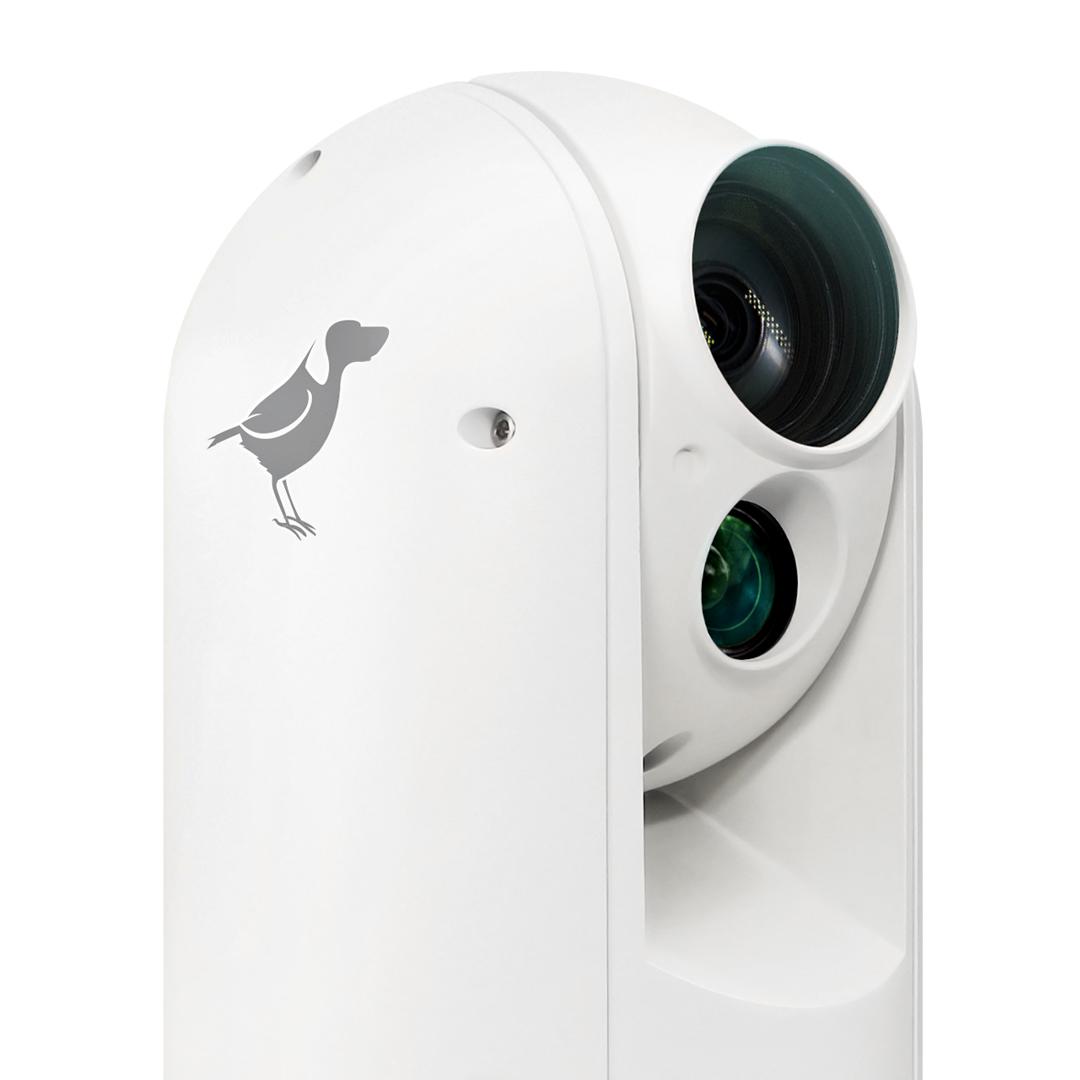

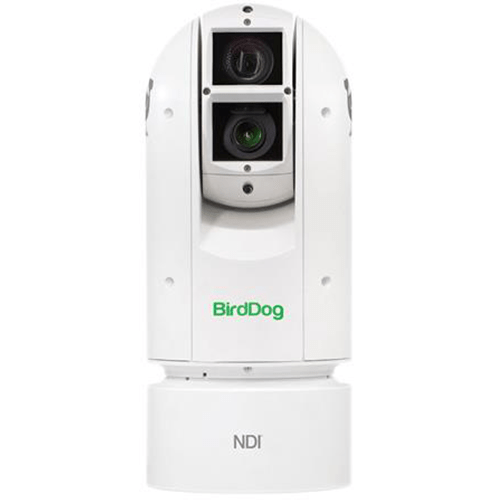

BirdDog Eyes BDA300 IP67 Extreme Weatherproof 30X FULL NDI PTZ cameraW/SONY Sensor & SDI (WHITE)

BirdDog Eyes BDA300 - NDI For All Conditions.

BDA300 PTZ camera utilizes BirdDog's custom NDI silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module.

Designed for serious production the image quality of A300 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, A300 has super-fast focus, incredibly sharp images, and amazingly fast zoom. A300 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, and NDI simultaneously

Full NDI. No compromises.
In the world of NDI, there are two flavors, NDI and NDI|HX. NDI® is a variable bit rate, I-Frame codec that reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. A300 only Encodes and Decodes Full YUV422 NDI

Sony Sensor. You deserve the best.
The best pictures come from the best silicon. A300 has teamed up a world-class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.

Sony Image Module. Optics done right.
Lightning autofocus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with the image module made by the world’s best. A300 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.

All-weather. Keep your NDI dry.
With an IP67 rating, A300 is perfect for fixed installations in outdoor and indoor environments. The nitrogen-filled housing ensures no fog, and the external housing has been treated for corrosion resistance against salt spray. With -40°C to +60°C operating temperature rating A300 has been designed to withstand the most extreme elements on earth

Nitrogen Filled Housing. Fog doesn’t live here.
Never worry about missing the shot. With A300’s nitrogen-filled housing there is no chance of the lens fogging up

Category 4 Hurricane? Bring it.
Designed for all weather conditions, A300 boasts an incredible Wind Load Durability rating equal to 60m/s. As long as you have it secured properly A300 will just keep on keeping on

Frickin laser beam.Pew Pew.
Built-in infrared laser with a range of up to 500 meters helps with focusing in
low light conditions.

Dual Output. NDI and SDI.
With NDI and SDI simultaneous outputs you can use the A300 is ready to go live with your full NDI® workflow, or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232 to future proof your investment by using baseband video now and move to NDI® when you are ready

30x Optical zoom. Over there is now over here.
The two punch 30x optical zoom and all-weather abilities of makes A300 perfect for outdoor and indoor fixed installations for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more.

You spin me, right round baby. Right round.
360-degree continuous rotation, 255 preset positions, Zero Deviation Positioning technology, and a preset movement speed of 150 degrees per second mean you will never miss a shot again.

PTZ Keyboard. Take control.
Combine A300 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full-featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control A300 over NDI® or by RS422 / RS232 when using in SDI mode.

PoE and Mounts. All options are available.
A300 can be powered by PoE with an optional PoE Injector. Designed to hang upside down the choice of mounting options gives coverage for virtually any situation. Wall mount, Ceiling Mount, Corner Mount, and Pole Mounting options all available

CAMERA
VIDEO OUTPUT
NDI/SDI
OPTICAL ZOOM
30x
IMAGE SENSOR
1 / 2.8 inch CMOS 2.13MP
LENS
4.3-129mm
DIGITAL ZOOM
12x
HORIZONTAL ANGLE OF VIEW
63.7° (W) – 2.3° (T)
APERTURE
F1.6 (W) – F4.7 (T)
MIN. ILLUMINATION
Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)
SHUTTER SPEED
1/1 – 1/10000s
FOCUS
Auto, Push, Manual
WHITE BALANCE
Auto, Indoor, Outdoor, Manual, OPW, ATW
EXPOSURE
Auto, Manual, Shutter/Iris Priority
BACKLIGHT COMPENSATION
YES

MECHANICAL
PAN MOVEMENT
Horizontal: ±360° continuous pan (Zoom Adaptive Speed Range: 0.01°〜80°/S )
TILT MOVEMENT
Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.1°〜90°/S)
PRESET POSITIONS
255 (Speed adjustable: Up to 150°/s)
ENVIRONMENTAL
Outdoor/Indoor, IP67, corrosion resistant treated housing, Wind load durability 60m/s, Nitrogen filled housing
OPERATING TEMPERATURE
-40 – +60 (°C)
OPERATING  HUMIDITY
≤80%
ILLUMINATION
IR Laser, illumination up to 500m

VIDEO INTERFACE
VIDEO OUTPUT
NDI/SDI
VIDEO FORMATS
1080p 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
AUDIO I/O
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)

CONTROL INTERFACE
IP PTZ CONTROL
NDI Control (auto configuring)
SERIAL PTZ CONTROL
RS422/RS485 Connector
SERIAL CONTROL PROTOCOL
VISCA / Pelco D

POWER & DIMENSIONS
POWER INPUT
AC 24v, PoE 80W Ready (BirdDog PoE 80W Injector needed, optional)
POWER CONSUMPTION
Min. 24W, Max. 80w (-40°C, IR Laser ON)
DIMENSIONS
180x180x423mm
WEIGHT
10.2kg


NETWORK
VIDEO COMPRESSION
Full NDI – i-frame high-quality low latency NDI for production
NETWORK PROTOCOL
NDI – Discovery, configuration, and control
WEB CONTROL INTERFACE
Full control via Web/Mobile UI including Scene presets
