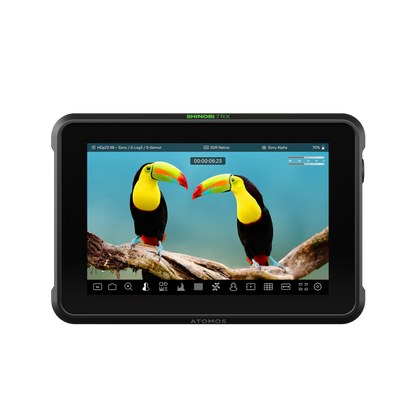

Atomos Shinobi 7 4K HDMI/SDI HDR Photo & Video Monitor

BIG, Bright, and Beautiful

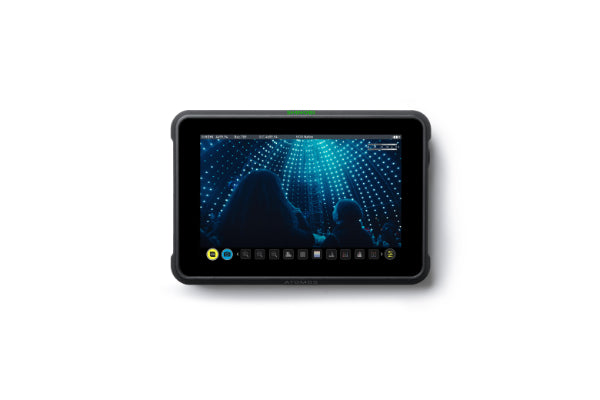

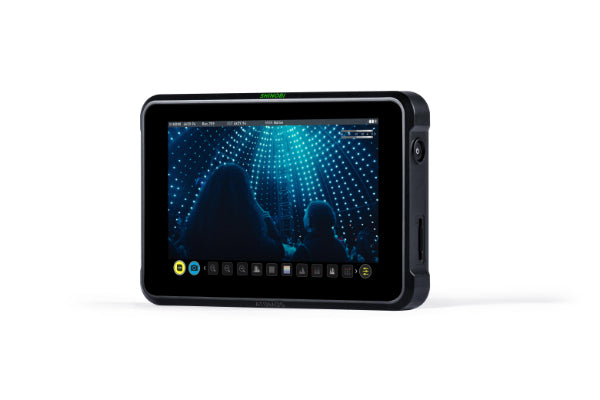

Shinobi 7 combines a large 7” HDR screen with a calibrated peak brightness of 2200Nits and the lightweight Monitor-only functions of the original Shinobi. The Shinobi 7 can be used in the brightest of environments to monitor signals up to 4Kp60
via HDMI. An ideal directors' monitor, focus pullers' monitor, program or preview display for video switchers and perfect for vloggers presenting to camera.

Camera Controls at the Fingertips
Control camera functions with the intuitive touchscreen of the Shinobi 7, designed to give you fast access to the most crucial camera features. The optional Atomos USB-C to serial cable gives you direct control of all the menu configurations on Z Cam E2 series cameras so that you can focus on the beautiful image and make dynamic adjustments of the iris, white balance, shutter angle, and ND.

HDR in the Field
Shinobi 7 screen displays a stunning 10+ stops of dynamic range in real time from Log/PQ/HLG signals. Combined with our unique HDR monitoring features, the Shinobi 7 simplifies the complexities of shooting Log and HDR.

Built-in 3D LUT Box
In addition to Log to HDR conversions, you can also use your own custom LUTs to feed downstream or live feed. Load up to eight custom LUTs at any time via the SD Card Slot and instantly select between them, maintaining creative intent at all times.

The Best of AtomOS 10
Shinobi 7 utilizes the AtomOS 10 platform and is packed with an extensive suite of scopes and simple one-touch operations. Shinobi includes monitoring tools for focus, framing & exposure, including Focus Peaking, 4:1 / 2:1 / 1:1 Zoom in, Zebra, False Color, Cine and social frame guides, SMPTE Safe Area,
Waveform, RGB parade, vectorscope, anamorphic de-squeeze.

Atomos ‘Analysis’ Mode
The Analysis feature allows you to see a waveform, histogram, and vectorscope simultaneously whilst monitoring the image to ensure complete control of your image. You can even switch
between different waveform, histogram, and vectorscope options on the fly with a single touch

Continuous Power

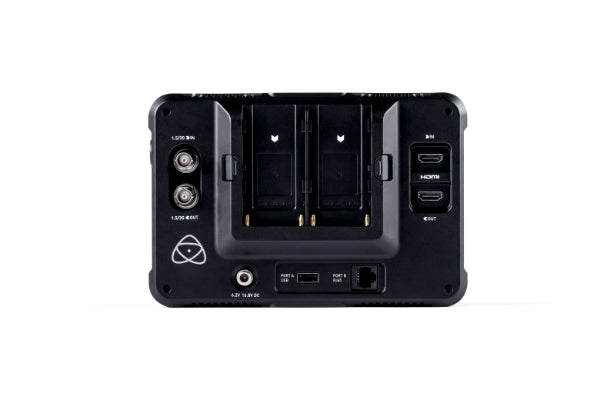

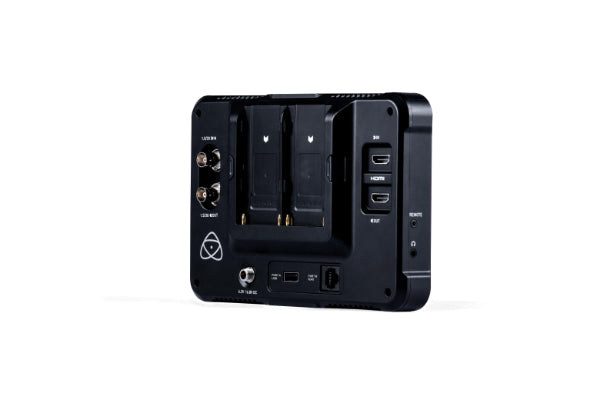

Shinobi 7 was designed to optimize battery usage while monitoring, as the dual battery slots, combine to allow you to run all day and easily hot-swap batteries. The dedicated locking
DC jack input allows you to connect to mains power on-set and can also be used with the optional DC to D-Tap cable for power in the field from block batteries.

Pro I/O and Cross Conversion
With both HDMI and SDI for input or output, Shinobi 7 fits into any production. With built-in cross-conversion and 4k to HD down-conversion, you can easily bring HDMI cameras into SDI workflows without the need for separate converters.

Factory & User Calibration
Factory calibrated for Rec.709, Shinobi 7 also supports user calibration with X-Rite’s i1DisplayPro/Plus and free Atomos Calibration software, which automates the calibration of the
screen to ensure accurate and reliable HDR and Rec. 709 monitoring.

 Physical Specifications

• Weight (Monitor Only): 577g / 1.04lb (excluding batteries)
• Dimensions (Monitor Only): 198mm x 133mm x 39mm
• Mount Points: 1 x Anti rotation 1/4" / 3/8 top and bottom

Construction

• Body: Polycarbonate ABS Plastic
• Cooling: Actively controlled fan and heat sink

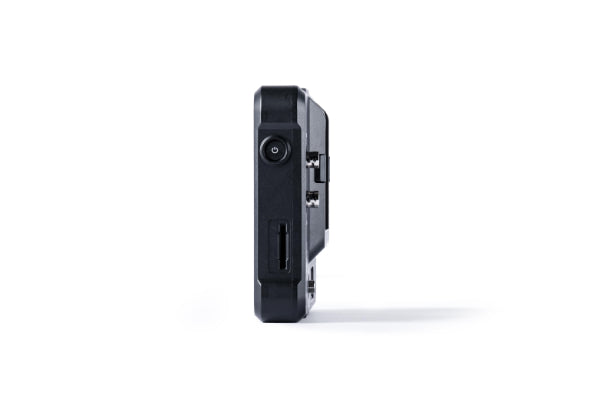

• Multi-function Button: Power / lock screen

Power

• Input voltage (battery): 6.2V to 16.8V
• Battery Voltage: 7.2V
• Operating Power: 5.8-7.2V
• Compatible Batteries: 2 x NPF L series
• Battery Run Time: 5200mAh - up to 2hrs, 7800mAh - up to 3hrs
• DC In: Locking DC jack
• Continuous power: Dual battery slots
• DTAP: Via optional DTap to DC cable

Display

• Touchscreen: SuperAtom IPS panel (capacitive touch)
• Size: 7”
• Resolution: 1920 x 1200
• PPI: 325
• Bit Depth: 10-bit (8+2 FRC)
• Backlight: Edge lit
• Brightness (cdm2 /Nits): 2200 +/- 10%
• Aspect Ratio: 16:9 Image Display
• Color Gamut: Rec.709
• Calibration Support: Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)

Technology

• 3D LUT Display: .Cube Format
• 3D LUT Down: Stream Loop out - HD only
• 3D LUT: 50/50 Yes
• Monitoring Modes: Native / HLG / PQ / 3D LUT
• HDR Output Conversion: HLG / PQ
• Gamma: Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri
  Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 /
  LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280
  / LogCEI1600, Panasonic Vlog,
  JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ
  (HDR10), HLG, Nikon N-Log, Olympus OM-Log, Lecia L-Log
• Gamut:BT2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.
  cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V
  Gamut, Arri Alexa Wide Gamut
  Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2
  / RedColor3 / RedColor4 / RedWideGamut

Video Input

• HDMI: 1 x HDMI (2.0) 4Kp60
• SDI: 1 x 3G SDI - 2k p60
• Bit: Depth 8 / 10-bit
• Video Chroma Subsampling: YCbCr 420 & 422

Video Output

• HDMI: 1 x HDMI (2.0) 4Kp60
• SDI (Play Out): 1 x 3G SDI - 2Kp60

Video Signal Conversion

• HDMI to SDI: Yes
• SDI to HDMI: Yes

Audio In/Out

• HDMI: 2ch 24-bit, input dependent
• SDI: 8ch 24-bit, input dependent

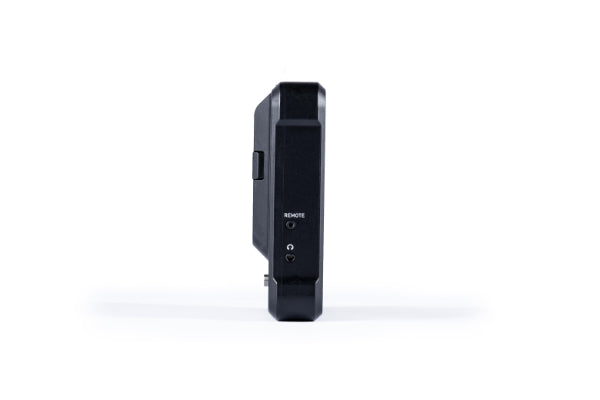

• Headphone out: 3.5mm 2ch.

Timecode/SYNC

• Embedded: HDMI and SDI

Supported Codecs & Frame Rates (Record & Playback)

• Supported Resolution & FPS  (Monitor Only):
  4K DCI: HDMI: 23.98p, 24p, 25p, 29.97p, 50p,
  59.94p
  4K UHD: HDMI: 23.98p, 24p, 25p, 29.97p, 50p,
  59.94p
  2K DCI 2046 x 1080: SDI: 23.98p, 24p, 25p,
  29.97p, 50p, 59.94p
  FHD 1920 x 1080 Progressive: HDMI and SDI :
  23.98/24/25/29.9/30/50/59.94/60p
  FHD 1920 x 1080 Interlaced: 50/

Supported Media

• SD: SD Card slot for LUTs / Firmware
• File System: ExFAT

On Screen Tools

• MultiScope Analysis: View Image, selectable Waveform, Histogram, Vector
• Scopes and Audio bars
• Waveform: Yes, 3 size / Position
• Histogram: Luma and RGB
• RGB Parade: Yes, 3 size / Position
• Vector Scope: Yes, 2 size / Position and zoom
• Magnification:
• 1 x Zoom
• 2 x Zoom
• 4x Zoom
• Focus Peaking: Color selected / focus assist sharpening /
• threshold setting / color / Mono / edges only
• False Color: Yes
• Zebra: Yes, adjustable
• Isolate Color Channel: Blue Only
• Cine Frame Guides: 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
• Social Frame guides: 9:16, 1:1, 191:1, 4:5
• Safe Areas Action and Graphic
• Grid Markers: 9 Grid
• Anamorphic Desqueeze: 1.25x 1.33x , 1.5x ,1.8x ,2x
• Display Flip: Vertical and Horizontal selfie mode

Onboard Processing

• 4K UHD Downscale for HD: Yes
• DCI Crop: Yes

External Device Control

• Serial 2.5mm Jack: USB-C to Serial (ATOMCAB018)
• USB: Camera control for supported cameras in future firmware release
• RJ45: Camera control for supported cameras in future firmware release

Warranty

• Standard: 1 year. Extended to 3 years on product
• registration
