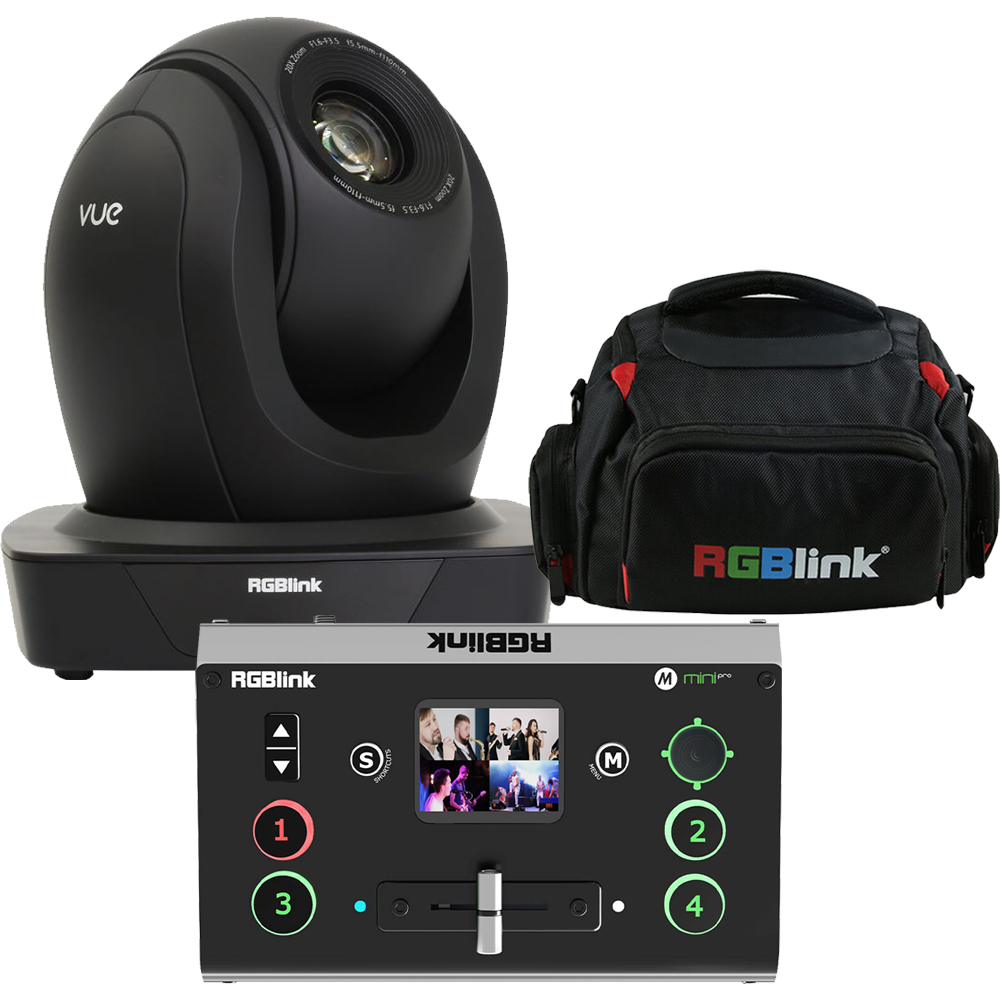

RGBLINK PTZ VUE 20X PTZ CAMERA WITH THE MINI-PRO

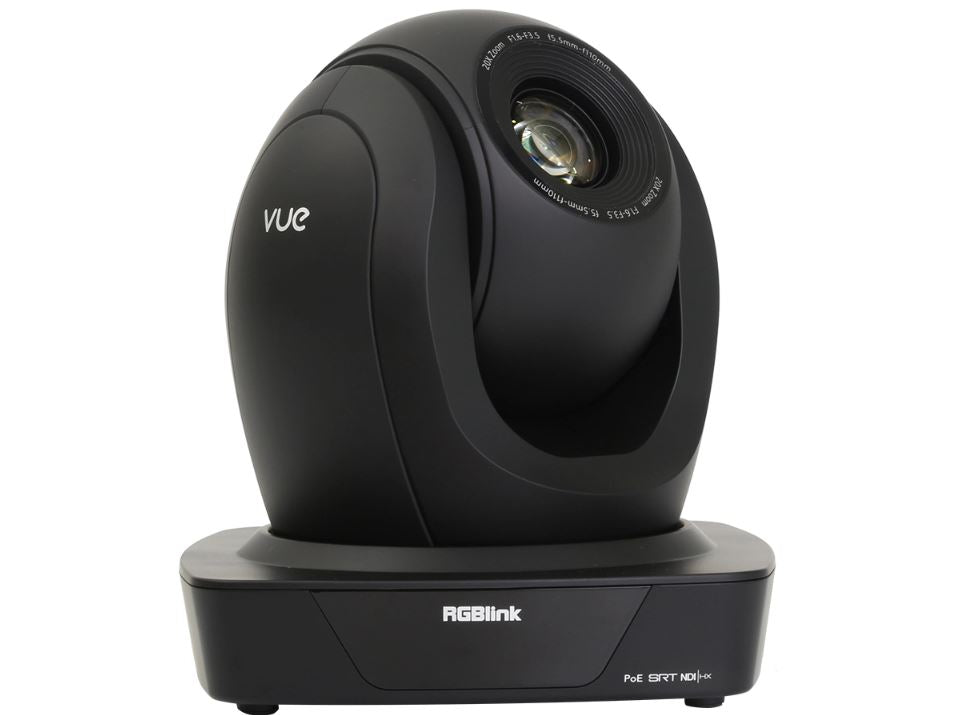

RGBlink PTZ VUE 20x PTZ Camera
Add whole new dimensions to capturing video presentations with RGBlink vue PTZ cameras.

Featuring advanced an ISP image processor and a 2-megapixel sensor, vue cameras is available in 20X optical zoom and a range of output options from HDMI & SDI to H.264, H.265 & NDI.

Pan, Tilt, Zoom to capture all the action – get in even closer with 10X digital zoom, and the best video with autofocus, dynamic level adjustment (WDR), and 2D/3D Dynamic Noise Reduction (DNR) all at up to 60fps. All vue models feature the unique TALLY crown light indicator, integrated right into the housing for 360-degree viewing. The innovative and patented RGBlink vue camera design is at home in every environment.

RGBlink mini-pro
The dual-channel video switcher mixer for the streaming generation, mini-pro features four resolution independent inputs – up to full 4K60 to take advantage of native high-performance sources, whether cameras or laptops, without compromise. While presets for PIP and PBP are provided, mini-pro includes full pixel-to-pixel scaling capabilities for both the PIP and background video layers – truly unique in a streaming mixer of this size – features usually found only on larger professional video mixers.

Audio for output is selectable from embedded sources or an external source. Both Line and Mic level audio a supported aboard with variable delay controls to bring audio into sync if needed. In addition to HDMI and USB 3.0 streaming outputs, the mini-pro includes a dedicated USB recording port. Simply connect a portable drive and record directly from mini-pro.

The exclusive integral display not only shows video preview but is touch-enabled for the natural operation of features and settings. The remote control is available via free companion apps for laptops and mobile devices too.

mini-pro is packed with features including dynamic output control, preview multi-view, picture-in-picture, Chroma Key, video transitions, onboard PTZ camera controls, and more.

• RGBlink PTZ VUE 20x PTZ Camera
• RGBlink mini-pro
• RGBlink mini-pro carrying bag

SPECIFICATIONS:

Output

• 3G SDI: 1xBNC
• HDMI: 1xHDMI-A
• USB: 1xUSB-A
• LAN : 1xRJ45

• 20x

• IN: 1x3.5mm Stereo Jack

• RS232 IN/OUT: 2xDIN8
• RS485: 1x4pin Terminal

• 1xDC12V Jack

• Optical Zoom: f＝5.05～91.50mm
• View Angle: 3.45°～ 60.04°
• AV: F1.8 ～ F2.9
• Digital Zoom: 10X
• Minimum Illumination: 0.5Lux (F1.8, AGC ON)
• DNR: 2D & 3D DNR
• White Balance: Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
• Focus: Auto/Manual
• Aperture/Electronic Shutter: Auto/Manual
• BLC: ON/OFF
• WDR: OFF/Dynamic Level Adjustment
• Video Adjustment: Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
• SNR: >55dB
• Effective Pixels: 2.07m,16:9

• Pan/Tilt Movement: -170°～+170°/'-30°～+90°
• Pan/Tilt Control Speed: 0.1～60°/S；0.1～30°/S
• Preset Speed/Quantity: Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)
• 360° TALLY: full 360° view of TALLY

• AAC | MP3 | G.711A

• H.264 | H.265 | Dual Streaming Output

•  720p50/59.94/60 | 1080p25/29.97/30/50/59.94/60 | 1080i50/59.94/60

• VISCA | Pelco-D | Pelco-P

• 115200 | 9600 | 4800 | 2400bps

• RTSP | RTMP | SRT | ONVIF

• SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI

•  DC12V/1.5A

• 12W

• -10℃～50℃

• 20%～80%

•  Net: 1.7kg

•     Net: 180mm(front)×188mm(side)×198mm(height)
